Keysight HD300EMBA Embedded software package I2C, SPI, UART (RS232/422/485) serial trigger and decode
The embedded software package for the Keysight InfiniiVision HD3 Series oscilloscopes enables protocol triggering and decoding for common serial buses used for embedded and mixed-signal designs. Capture any errors on your serial bus with an uncompromised waveform update rate combined with our hardware-based decoding.
Key Features and Functions
- Achieve accurate and fast solution for triggering on and analyzing I²C, SPI, I²S, and RS232 / 422 / 485 / UART serial buses.

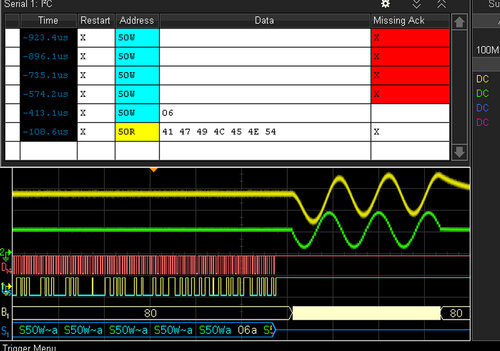

- View multiple bus decode triggers with lister display.
- Perform two-wire, three-wire, and four-wire SPI serial protocol trigger and analysis.
- Time correlate on-screen serial decode with serial data waveforms.
