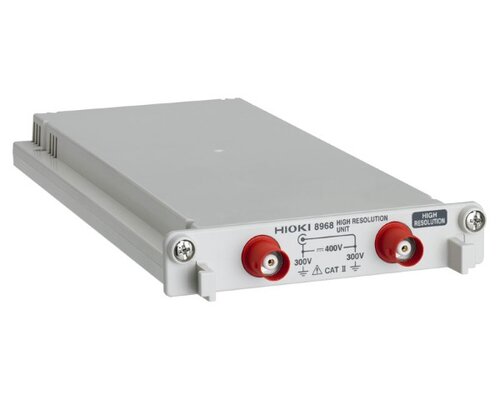

Hioki 8968 HIGH RESOLUTION UNIT
High-precision measurement of instantaneous voltage waveforms
- High 16-bit A/D resolution
- Isolated 2 channel input
- Max. rated voltage to ground: 300 V AC, DC (CAT II)
Documents and Software:
For MR6000, MR8847A, MR8827, and similar products
Basic specifications
Accuracy guaranteed: 1 year
Measurement functions | Number of channels: 2, for voltage measurement |
Input connectors | Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF), |
Measurement range | 5 mV to 20 V/div, 12 ranges, full scale: 20 div, AC voltage for possible measurement/display using the memory function: 280 V rms, Low-pass filter: 5/50/500 Hz, 5 k/50 kHz |
Anti-aliasing filter | Integrated filter for suppressing aliasing distortion caused by FFT processing (automatic cutoff frequency setting/OFF) |
Measurement resolution | 1/1600 of measurement range (using 16-bit A/D conversion and when installed in the 8847) |
Highest sampling rate | 1 MS/s (simultaneous sampling across 2 channels) |
Measurement accuracy | ±0.3 % of full scale (with filter 5 Hz, zero position accuracy included) |
Frequency characteristics | DC to 100 kHz -3 dB, with AC coupling: 7 Hz to 5 MHz -3dB |
Input coupling | AC/DC/GND |
Max. allowable input | 400 V DC (the maximum voltage that can be applied across input pins without damage) |
Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 250 g (8.8 oz) |
Included accessories | None |
For MR6000, MR8847A, MR8827, and similar products
Basic specifications
Accuracy guaranteed: 1 year
Measurement functions | Number of channels: 2, for voltage measurement |
Input connectors | Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF), |
Measurement range | 5 mV to 20 V/div, 12 ranges, full scale: 20 div, AC voltage for possible measurement/display using the memory function: 280 V rms, Low-pass filter: 5/50/500 Hz, 5 k/50 kHz |
Anti-aliasing filter | Integrated filter for suppressing aliasing distortion caused by FFT processing (automatic cutoff frequency setting/OFF) |
Measurement resolution | 1/1600 of measurement range (using 16-bit A/D conversion and when installed in the 8847) |
Highest sampling rate | 1 MS/s (simultaneous sampling across 2 channels) |
Measurement accuracy | ±0.3 % of full scale (with filter 5 Hz, zero position accuracy included) |
Frequency characteristics | DC to 100 kHz -3 dB, with AC coupling: 7 Hz to 5 MHz -3dB |
Input coupling | AC/DC/GND |
Max. allowable input | 400 V DC (the maximum voltage that can be applied across input pins without damage) |
Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 250 g (8.8 oz) |
Included accessories | None |
