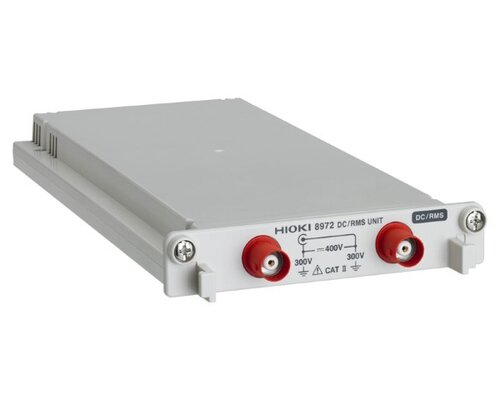

Measure instantaneous and RMS waveforms
High 12-bit A/D resolution
Isolated 2 channel input
Max. rated voltage to ground: 300 V AC, DC (CAT II)
From low to high frequency, wide bandwidth RMS rectifier installed (DC, or 30 Hz to 100 kHz)
Monitor instantaneous waveforms without the need to pass through the rectifying circuit
Documents and Software:
For MR6000, MR8847A, MR8827, and similar products
Basic specifications
Accuracy guaranteed: 1 year
Measurement functions | Number of channels: 2, for voltage measurement, DC/RMS selectable |
Input connectors | Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF), |
Measurement range | 5 mV to 20 V/div, 12 ranges, full scale: 20 div, (AC voltage for possible measurement/display using the memory function: 280 V rms) |
Measurement resolution | 1/100 of measurement range (using 12-bit A/D conversion and when installed in 8847) |
Highest sampling rate | 1 MS/s (simultaneous sampling across 2 channels) |
Measurement accuracy | ±0.5 % of full scale (with filter 5 Hz, zero position accuracy included) |
RMS measurement | RMS amplitude accuracy: ±1 % of full scale (DC, 30 Hz to 1 kHz), ±3 % of full scale (1 kHz to 100 kHz), |
Frequency characteristics | DC to 400 kHz -3 dB, with AC coupling: 7 Hz to 400 kHz -3dB |
Input coupling | AC/DC/GND |
Max. allowable input | 400 V DC (the maximum voltage that can be applied across input pins without damage) |
Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 250 g (8.8 oz) |
Included accessories | None |
For MR6000, MR8847A, MR8827, and similar products
Basic specifications
Accuracy guaranteed: 1 year
Measurement functions | Number of channels: 2, for voltage measurement, DC/RMS selectable |
Input connectors | Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF), |
Measurement range | 5 mV to 20 V/div, 12 ranges, full scale: 20 div, (AC voltage for possible measurement/display using the memory function: 280 V rms) |
Measurement resolution | 1/100 of measurement range (using 12-bit A/D conversion and when installed in 8847) |
Highest sampling rate | 1 MS/s (simultaneous sampling across 2 channels) |
Measurement accuracy | ±0.5 % of full scale (with filter 5 Hz, zero position accuracy included) |
RMS measurement | RMS amplitude accuracy: ±1 % of full scale (DC, 30 Hz to 1 kHz), ±3 % of full scale (1 kHz to 100 kHz), |
Frequency characteristics | DC to 400 kHz -3 dB, with AC coupling: 7 Hz to 400 kHz -3dB |
Input coupling | AC/DC/GND |
Max. allowable input | 400 V DC (the maximum voltage that can be applied across input pins without damage) |
Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 250 g (8.8 oz) |
Included accessories | None |
