One of the industry’s smallest current sensors
Key Features and Functions
High Accuracy ±0.3 %
- Measurable current 100 uA to 2 A
- Ultra small size sensor with slide open/lock mechanism
- Wide temperature range -40 to 85 oC
- Bandwidth DC to 100 kHz
USPs:
- Easy installation, even in tight spaces
- Accurate low current measurement
- Automatic recognition by HIOKI Power Analyzer PW8001
- Allows for stable measurement from Alaska to the Sahara
Applications:
- Development and analysis tool for improving the fuel efficiency of electrical vehicles
- Consumption measurement of low power EV circuits like wipers, entertainment system, seat heating, power steering etc.
- Optimizing the overall energy consumption of low power circuits in EVs to extend the driving range
- Optimizing the overall energy consumption of low power circuits in electrical construction vehicles or in electrical agricultural vehicles to extend the time between charging

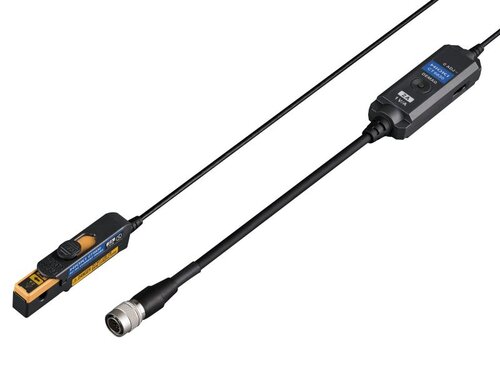

The ultra-small CT6830 Current Probe with its slide-open/lock feature is one of the smallest high-accuracy sensors on the market. Contactless measurement of currents from 100 µA to 2 A AC/DC and frequencies up to 100 kHz are possible even in the most confined spaces with a basic accuracy of ±0.3 %. This compact sensor gives development engineers of EVs, electrical trucks, buses, construction, and agricultural vehicles the possibility to accurately monitor energy consumption under the most extreme temperature conditions.
Designed to be used in combination with a HIOKI Power Analyzer, Memory Recorder or Data Logger, the CT6830 provides detailed energy consumption insight for example of a vehicle under test. Combined with a CT9555, CT9556 or CT9557 Power Supply Unit, the CT6830 Current Probe can also be connected to third party equipment like for instance a DAQ system or an oscilloscope.
