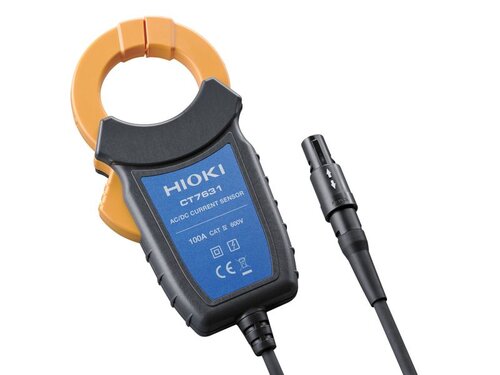

Hioki CT7631 AC/DC CURRENT SENSOR
AC/DC Current Sensor, DC to 10kHz (-3dB), 100A AC/DC, +/-1.8% deg. phase accuracy, 33 mm core diameter, 2.5m cord length, PL14 terminal
Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CT7636 is a 600 A AC/DC Current Sensor that pairs with the detachable Display Unit CM7290 or CM7291 to capture instantaneous waveforms that can be output to a Hioki memory recorder or logger for further analysis.
Accuracy guaranteed: 3 years, Accuracy guarantee period after adjustment made by Hioki: 3 years
- Rated measurement current: 100 A AC/DC
- Max. measurement current: 100 A
- (requires derating at frequency)
- Bandwidth:
- DC to 10 kHz (-3dB)
- (When used in combination with CM7290 or CM7291: DC 3 Hz to 1 kHz)
- Typical phase accuracy: ±1.8 deg. (DC < f ≤ 66 Hz)
- Output rate: 1 mV/A
- Max. rated voltage to earth:
- AC/DC 600 V (CAT IV)
- AC/DC 1000 V (CAT III)
- Core diameter: φ 33 mm (1.30 in) or less
- Output connectors: HIOKI PL 14
- Operating temperature range: -25°C to 65°C (-13°F to 149°F)
- Dimensions and mass: 64 mm (2.52 in)W × 160 mm (6.30 in)H × 34 mm (1.34 in)D, 320 g (11.3 oz), Cable length 2.5 m (8.20 ft)
- Accessories: None
