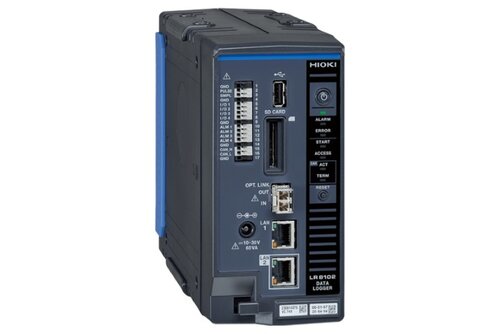

Hioki LR8102 DATA LOGGER

Product model

Data Logger LR8102

Data Logger LR8101

Modules that can be connected

See [Options] > [Connectable measurement modules]

Maximum number of module connections

10

Maximum number of synchronizable loggers

10
(Requires optical connection cables)

N/A

Power supply

AC adapter: AC Adapter Z1016 (operates on 12 V DC ±10%)
External power supply: 10 V DC to 30 V DC
AC Power Module M1100: Always required when using the Power Measurement Module M7103.

Operating temperature and humidity range

−10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing)

Number of LAN ports

2

1

Communication interface

[LAN1 functionality]
Collecting data and setting recording conditions using Logger Utility
Setting the initial IP address using Logger Utility
Setting and controlling recording using communication commands
Manually acquiring data using an FTP Server
Automatically sending data via FTP (FTP client)
HTTP server function
XCP on Ethernet (TCP)
NTP client function

[LAN2 functionality]
XCP on Ethernet (UDP)
Measurement data can be output by UDP

[LAN1 functionality]
Collecting data and setting recording conditions using Logger Utility
Setting the initial IP address using Logger Utility
Setting and controlling recording using communication commands
Manually acquiring data using an FTP Server
Automatically sending data via FTP (FTP client)
HTTP server function
XCP on Ethernet (TCP)
NTP client function

External media

USB Drive, Operation guaranteed: Z4006 (16 GB)
SD memory card/SDHC memory card supported, Operation guaranteed: Z4001 (2 GB), Z4003 (8 GB)

External control terminal

Pulse/logic input (1), External sampling input (1), External input and output (4), Alarm output (4), GND terminal (5), CAN interface (1)

Pulse/logic input (1), External sampling input (1), External input and output (4), Alarm output (4), GND terminal (5)

Dimensions and weight

- No module:
Approx. 80W × 166H × 238D mm (3.1W × 6.5H × 9.4D in.) (excluding protruding parts), Approx. 1.5 kg (3.3 lbs)
- With one M7100 installed:
Approx. 134W × 166H × 263D mm (5.3W × 6.5H × 10.4D in.) (excluding protruding parts)
- With ten M7100 installed:
Approx. 620W × 166H × 263D mm (24.4W × 6.5H × 10.4D in.) (excluding protruding parts)

Included accessories

Operating Precautions ×1, Startup Guide ×1, DVD ×1 (Startup Guide, Instruction Manual, Logger Utility, Logger Utility Instruction Manual, CAN Editor, CAN Editor Instruction Manual, Communication Command Instruction Manual)
