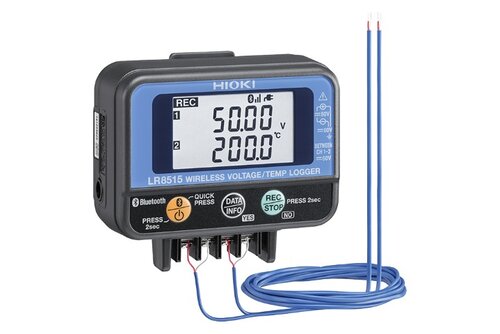

Hioki LR8515 WIRELESS VOLTAGE/TEMP LOGGER
Easy, Wireless Collection of a Variety of Data Types, including Voltage Input and Thermocouple Types K and T
Key Features and Functions
- A single device to measure everything from the minute voltages of pyranometers or heat flow sensors to battery voltage to temperature
- Compact, two-channel model fits where other devices don’t
- Download measurement data to a tablet or computer with Bluetooth® wireless technology
- Three-way power (AC adapter, AA alkaline batteries, or external 5 to 13.5 V power supply)
- Store 500,000 data points per channel
Documents and Software:
Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The Hioki LR8515 Wireless Voltage/Temperature Logger provides easy, wireless collection of a variety of data types, including voltage input and thermocouple types K and T, all in a single device.
Basic specifications
Accuracy guaranteed: 1 year
Functionality | [Used as standalone product (Data collected manually) ] |
Number of channels | 2 ch (isolated; select voltage of thermocouple for each channel), Input terminals: M3 screw type terminal block |
Measurement items | Voltage/ Thermocouple (K, T) |
Maximum input voltage | ±50 V DC, Max. inter-channel voltage 60 V DC |
Measurement range | [Voltage] ±50 mV to ±50 V , Max. resolution 0.01 mV |
Measurement accuracy | [Voltage] ±0.05 mV (50 mV range) |
Display items | Measurement value, date, time, number of recorded data, maximum value, minimum value, and average value |
Functions | Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function, Free run |
Recording | [Capacity] 500,000 data items for each channel [Mode] Instantaneous value [Interval] 0.1 to 30 sec, 1 to 60 min, 16 selections |
Power source | AC Adapter Z2003 (AC100 V to 240 V, 50 Hz/60 Hz), AA alkaline batteries (LR6) ×2, External power DC5 V to 13.5 V (can also be supplied from USB bus power, with a conversion cable) |
Continuous operating time | 2.5 months (Recording interval of 1 min, Bluetooth® OFF), 7 days (Recording interval of 1 sec, Bluetooth® ON), 2 days (Recording interval of 0.1 sec, during real-time measurement with the LR8410) |
Dimensions and mass | 85 mm (3.35 in) W × 75 mm (2.95 in) H × 38 mm (1.50 in) D, 126 g (4.4 oz) (Not including the battery) |
Included accessories | CD-R ×1 (Instruction Manual, Logger Utility, Wireless Logger Collector), Measurement Guide ×1, Caution for Using Radio Waves × 1, AA alkaline batteries (LR6) ×2 |
