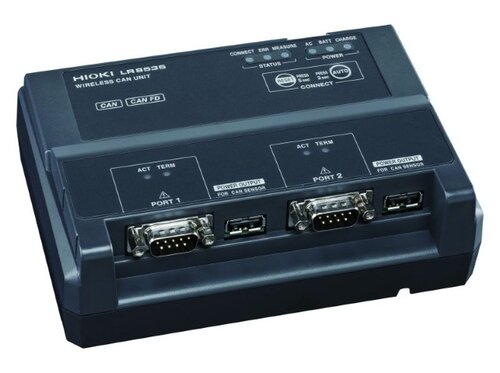

Hioki LR8535 WIRELESS CAN UNIT
Wireless, CAN/CAN FD input only
Key Features and Functions
- CAN/CAN FD input only
- Wireless connection between LR8450-01 and measurement module, 30 m range
- Max. sampling 10 ms (up to 50 ch)
- Max. 500 ch measurement (at 100 ms)
Documents and Software:
Basic specifications
Connectable instrument | Memory HiLogger LR8450-01 (Wireless LAN model) |
Control communications method | Connect wirelessly via Wireless LAN Adapter Z3230 (included) |
Communications buffer memory | 4 M word (volatile memory) |
Operating temperature | -20°C to 55°C, 80% RH (no condensation) |
Storage temperature | -20°C to 60°C, 80% RH (no condensation) |
Vibration resistance | JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent |
LED display | Wireless connection, measurement status, error status, AC adapter/external power, battery power, charge status, CAN bus communication status, termination resistor connection status |
Automatic connection function | Available |
Included accessories | Wireless LAN Adapter Z3230 × 1, Instruction manual × 1, AC Adapter Z1008 × 1, mounting plate × 1, M3×4 screw × 2 (for use with mounting plate) |
Number of input | Max. 500 channels (max. 500 signals) , depends on data refresh interval |
Input terminals | D-sub 9 pin MALE × 2 |
Protocols supported | CAN (ISO11898) |
Physical layer | ISO11898 (High Speed) |
