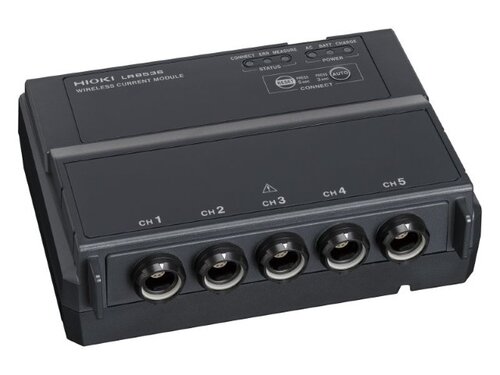

Hioki LR8536 WIRELESS CURRENT MODULE
Introducing a current measurement module with a sampling rate as high as 1 ms/S
Key Features and Functions
- Sample data at rates of up to 1 ms
- Measure up to 5 channels
- Superior ease of use with wireless connections
Documents and Software:
Basic specifications
Accuracy guaranteed: 1 year
Connectable instruments | Memory HiLogger LR8450-01 (Wireless LAN model) |
Operating temperature and humidity | -20°C to 55°C, 80% RH or less (no condensation) |
Storage temperature and humidity | -20°C to 60°C, 80% RH or less (no condensation) |
Vibration resistance | JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent |
Number of input channels | 5 ch |
Measurement targets | Current (using an optional current sensor) |
Input format | Current sensor (Hioki PL14) |
Response time for instantaneous values | 150 μs |
Frequency characteristics for RMS values | DC to 5 kHz |
Response time for RMS values | 0.8 s |
Current measurement | 200 mA, 2 A?CT7812? |
Included accessories | Wireless LAN Adapter Z3230 × 1, Instruction manual × 1, AC Adapter Z1008 × 1, mounting plate × 1, M3×4 screw × 2 (for use with mounting plate), Caps × 5 |
