Waveform Generator Input Module for Control Simulation Testing
- Output sine waves (20 kHz max.) and DC voltage signals up to 4 channels per unit
- Output signals up ±10V or 5mA
- For limited models only (Cannot be used for 8847, MR8847-01, MR8847-02, MR8847-03)
- Isolated between unit and output, and between all channels
Documents and Software:

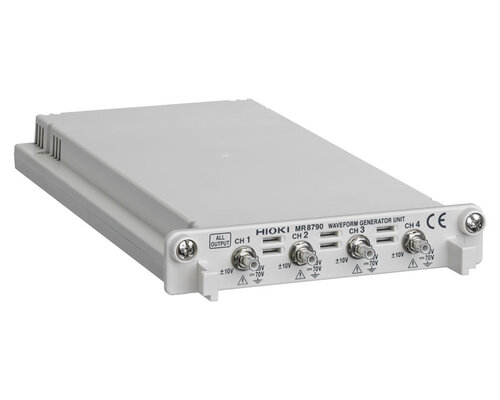

The Waveform Generator Unit MR8790 is a plug-and-play module for Hioki Memory HiCorders that offers high-precision DC voltage output for generating signals that simulate voltage fluctuations at very low levels.
Basic specifications
Accuracy guaranteed: 1 year
Output terminal | Number of channels: 4, SMB terminal (Output impedance: 1 Ω or less) |
Output voltage range | -10 V to 10 V (Amplitude setting range: 0 V to 20 V p-p, Setting resolution: 1 mV) |
Max. output current | 5 mA |
Output function | DC, Sine wave (Output frequency range: 1 Hz to 20 kHz) |
Accuracy | Amplitude accuracy: ±0.25% of setting ±2 mV p-p (1 Hz to 10 kHz) |
Other | Self-test function (Voltage, Current) |
Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz) |
Included accessories | None |
The Waveform Generator Unit MR8790 is a plug-and-play module for Hioki Memory HiCorders that offers high-precision DC voltage output for generating signals that simulate voltage fluctuations at very low levels.
Basic specifications
Accuracy guaranteed: 1 year
Output terminal | Number of channels: 4, SMB terminal (Output impedance: 1 Ω or less) |
Output voltage range | -10 V to 10 V (Amplitude setting range: 0 V to 20 V p-p, Setting resolution: 1 mV) |
Max. output current | 5 mA |
Output function | DC, Sine wave (Output frequency range: 1 Hz to 20 kHz) |
Accuracy | Amplitude accuracy: ±0.25% of setting ±2 mV p-p (1 Hz to 10 kHz) |
Other | Self-test function (Voltage, Current) |
Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 230 g (8.1 oz) |
Included accessories | None |
