Capture High- to Low-Voltage Signals in a Single Device! Rugged, Professional and Ready for the Field
- CAT III 600V isolation performance; directly measure a 480V power line
- 4 completely isolated channels let you simultaneously record data on a 3-phase power line plus have one extra channel
- Tough against harsh environments; -10°C to 50°C operating temperature range
- Built to withstand mechanical shocks and vibrations (ships standard with side protectors)
- Make settings easily with PRESETS function
Documents and Software:

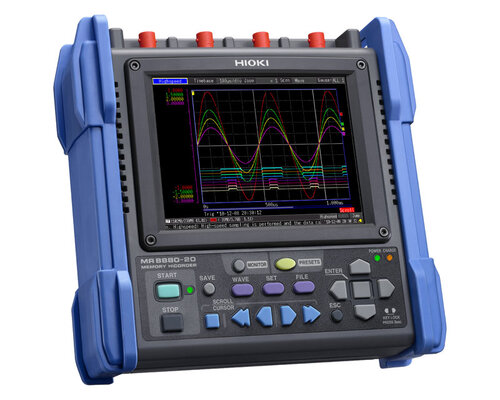

Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple quick-changing phenomena due to complete isolation between channels and from each channel to the ground. The MR8880 is a data acquisition (DAQ) recorder built in with 4 analog channels that can accept direct input of 600V, enabling measurements of 3-phase systems.
Basic specifications
Accuracy guaranteed: 1 year
Number of channels | 4 analog channels + 8 logic channels (standard) |
Measurement ranges | 4 channels of voltage measurement; mode switchable between instantaneous waveform or RMS value, 10 mV to 100 V/div, 13 ranges, resolution: 1/640 of range |
Max. rated voltage | Between terminals: 600 V AC/DC, Between terminal to earth: 600 V AC/DC CAT III; 300 V AC/DC CAT IV |
Frequency characteristics | DC to 100 kHz (±3dB) |
Time axis | 100 µs to 100 ms/div, 10 ranges, Sampling period: 1/100 of range |
Recording intervals | 100 µs to 1 minute, 19 selections (simultaneous sampling in all channels) |
Measurement functions | High-speed function (high speed recording) |
Memory capacity | 14-bits × 1M-words/ch (1 word = 2 bytes) |
Removable storage | CF card slot ×1 (Up to 2 GB), USB 2.0 memory ×1 |
Printing | [Printer unit is option] 112 mm (4.41 in) × 18 m (59.06 ft), thermal paper roll, Recording speed : 10 mm (0.39 in)/sec |
Display | 5.7-inch VGA-TFT color LCD (640 × 480 dots) |
Displayable languages | English, Japanese, Chinese |
Communication interfaces | USB 2.0 mini-B receptacle × 1; Transfers files from the installed CF card or USB memory stick to a PC when connected, and External PC control |
Power supply | AC adapter Z1002: 100 to 240 V AC (50/60 Hz), 45 VA (include AC adapter, when Real-time recording), 107 VA (include AC adapter, when Real-time recording and printing) |
Dimensions and mass | 205 mm (8.07 in)W × 199 mm (7.83 in)H × 67 mm (2.64 in)D, 1.66 kg (58.6 oz) (with the Battery pack installed) |
Included accessories | Instruction manual ×1, AC adapter Z1002 ×1, Alkaline battery box ×1, Strap ×1, USB cable ×1, Application disk (Wave viewer Wv, Communication commands table) ×1 |
