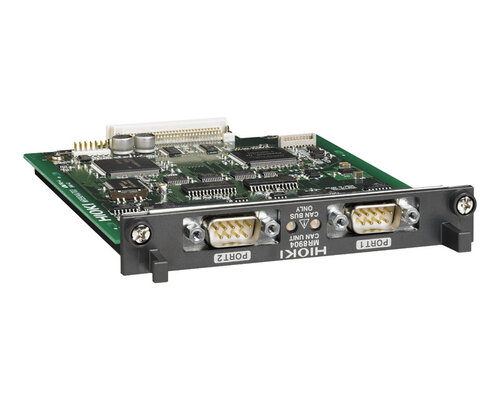

Hioki MR8904 CAN UNIT

Input CAN port

Number of ports: 2, Connector: D-sub a male 9 pin ×2

Standards

ISO 11898 CAN 2.0b, ISO 11898-1, ISO 11898-2, ISO 11898-3, SAE J2411

Interface

Selectable: High-speed CAN, Low-speed CAN, or Single-wire CAN by port (with built-in corresponding transceiver)

Transmit ACK

ON/OFF for transmitting a ACK for receiving CAN signal with the MR8904

Terminator

ON/OFF via commands, 120 Ω ±10 Ω built-in resistance

Baud rate

50 kbps to 1 Mbps at “High-speed”, 10 kbps to 125 kbps at “Low-speed”, 10 kbps to 83.3 kbps at “Single-wire”

Analyzed signal output channel

Up to 15 analog channels each equivalent to a 16-bit analog signal
Up to 16 logic channels each equivalent to a 1-bit logic signal

Signal form

1-bit signal: 1 channel of Logic, or 1 channel of Analog
1-bit to 16-bits signal: 1 channel of Analog
17-bits to 32-bits signal: 2 channels of Analog
* Cannot handle signals over 32-bits

ID trigger

Output “H” level pulse to designated logic channel when receiving set ID signal
* Output pulse width: 50 μs below 5 ms/div time axis, 1 sampling time at more than 10 ms/div time axis

Response time

Within 200 μs after completely receiving CAN message

Transmit CAN message

Can transmit the setting CAN message to the CAN bus by a port

Dimensions and mass

119.5 mm (4.70 in)W × 18.8 mm (0.74 in)H × 151.5mm (5.96 in)D, 185 g (6.5 oz)

Included accessories

None

Input CAN port

Number of ports: 2, Connector: D-sub a male 9 pin ×2

Standards

ISO 11898 CAN 2.0b, ISO 11898-1, ISO 11898-2, ISO 11898-3, SAE J2411

Interface

Selectable: High-speed CAN, Low-speed CAN, or Single-wire CAN by port (with built-in corresponding transceiver)

Transmit ACK

ON/OFF for transmitting a ACK for receiving CAN signal with the MR8904

Terminator

ON/OFF via commands, 120 Ω ±10 Ω built-in resistance

Baud rate

50 kbps to 1 Mbps at “High-speed”, 10 kbps to 125 kbps at “Low-speed”, 10 kbps to 83.3 kbps at “Single-wire”

Analyzed signal output channel

Up to 15 analog channels each equivalent to a 16-bit analog signal
Up to 16 logic channels each equivalent to a 1-bit logic signal

Signal form

1-bit signal: 1 channel of Logic, or 1 channel of Analog
1-bit to 16-bits signal: 1 channel of Analog
17-bits to 32-bits signal: 2 channels of Analog
* Cannot handle signals over 32-bits

ID trigger

Output “H” level pulse to designated logic channel when receiving set ID signal
* Output pulse width: 50 μs below 5 ms/div time axis, 1 sampling time at more than 10 ms/div time axis

Response time

Within 200 μs after completely receiving CAN message

Transmit CAN message

Can transmit the setting CAN message to the CAN bus by a port

Dimensions and mass

119.5 mm (4.70 in)W × 18.8 mm (0.74 in)H × 151.5mm (5.96 in)D, 185 g (6.5 oz)

Included accessories

None
