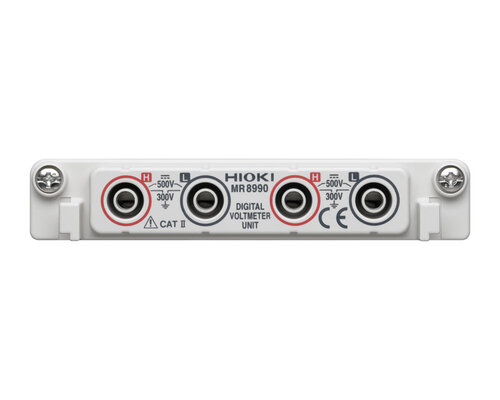

Hioki MR8990 DIGITAL VOLTMETER UNIT
High resolution of 6.5-digit and 1,200,000 counts for minute voltage measuring
- DVM unit dedicated to DCV measurement
- Isolated 2 channel input
- Max. rated voltage to ground: 300 V AC or DC (CAT II)
- High-precision measurement for applications such as investigating minute voltage fluctuations in sensor output
- Unlike standard multi-channel scanning-type loggers, this instrument can perform simultaneous sampling
- High accuracy of ±0.01 % and super-high 1.2 million-count resolution
- High-speed sampling at 500 S/s
Documents and Software:
For the MR6000, MR8740, MR8847A, MR8827, and similar products
Basic specifications
Accuracy guaranteed: 1 year
Measurement functions | Number of channels: 2, for DC voltage measurement |
Input connectors | Banana input connectors (Input resistance: 100 MΩ or higher with 100 mV f.s. to 10 V f.s. range, otherwise 10 MΩ) |
Measurement ranges | 100 mV f.s. (5 mV/div): -120.0000 mV to 120.0000 mV, 0.1 μV resolution to 1000 V f.s. (50 V/div): -500.000 V to 500.000 V, 1 mV resolution, 5 ranges |
Measurement resolution | 1/50 000 of measurement range (using 24 bit ΔΣ modulation A/D) |
Integration time | 20 ms × NPLC (during 50 Hz), 16.67 ms × NPLC (during 60 Hz) |
Response time | 2 ms + 2 × integration time or less (rise - f.s. → + f.s., fall + f.s. → - f.s.) |
Basic measurement accuracy | ±0.01% rdg. ±0.0025% f.s. (at range of 1000 mV f.s.) |
Maximum input voltage | 500 V DC (maximum voltage that can be applied between input connectors without damage) |
Dimensions and mass | 106 (4.17 in) W ×19.8 (0.78)H × 196.5 (7.74 in)D mm, 260 g (8.8 oz) |
Included accessories | Instruction manual ×1 (For single product shipment only) |
