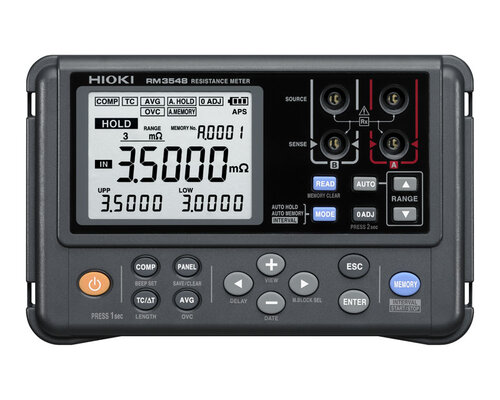

Hioki RM3548-90 Portable Resistance Meter (With Z3210 BT Adapter)
High-precision Portable Resistance Meter Measures from µΩ to MΩ
Key Features and Functions
- 0.02% basic accuracy, 0.1 µΩ max. resolution, 1 A max. testing current
- Measure from 0.1 µΩ (testing current 1 A) to 3.5 MΩ
- Automatic temperature correction ensures accurate results & faster testing
- Advanced Connectivity: seamlessly integrate data with Excel® and a mobile app to manage & analyze data efficiently (*1)
- Protections for safe operation: halts operation & triggers alerts when incorrect voltage inputs are detected
- Versatile Applications: Ideal for EV, aircraft, & motor/transformer maintenance with various probe options
- Including Bluetooth communication with Z3210 adapter
More information:
The HIOKI RM3548-90 Resistance Meter is a portable, highly sensitive milliohm meter designed for precise small resistance measurements. It delivers a basic accuracy of 0.02% and a resolution of 0.1 ??, covering a range from 3 m? to 3 M?. This makes it ideal for monitoring even slight changes in contact resistance, such as in electric vehicles (EVs), motor and generator windings, or for high-precision cable length measurements. The RM3548-90 is compact and lightweight. Weighing less than 1 kilogram, this resistance meter allows for easy use in hard-to-reach places. Its rugged design and portability make it a convenient tool for fieldwork and maintenance tasks. With a high current capability of up to 1 A, it can measure low resistance values reliably, making it suitable for checking continuity in automotive ground lines and inspecting welds in aircraft fuselages.The Resistance Meter RM3548-90 features temperature correction, ensuring accurate measurements by adjusting for ambient conditions. It also includes advanced functions like interval measurement, making it suitable for temperature-rise testing. The device requires no warm-up or zero adjustments, allowing for immediate operation.
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Description
Reviews
Query on the Item
The HIOKI RM3548-90 Resistance Meter is a portable, highly sensitive milliohm meter designed for precise small resistance measurements. It delivers a basic accuracy of 0.02% and a resolution of 0.1 ??, covering a range from 3 m? to 3 M?. This makes it ideal for monitoring even slight changes in contact resistance, such as in electric vehicles (EVs), motor and generator windings, or for high-precision cable length measurements. The RM3548-90 is compact and lightweight. Weighing less than 1 kilogram, this resistance meter allows for easy use in hard-to-reach places. Its rugged design and portability make it a convenient tool for fieldwork and maintenance tasks. With a high current capability of up to 1 A, it can measure low resistance values reliably, making it suitable for checking continuity in automotive ground lines and inspecting welds in aircraft fuselages.The Resistance Meter RM3548-90 features temperature correction, ensuring accurate measurements by adjusting for ambient conditions. It also includes advanced functions like interval measurement, making it suitable for temperature-rise testing. The device requires no warm-up or zero adjustments, allowing for immediate operation.
