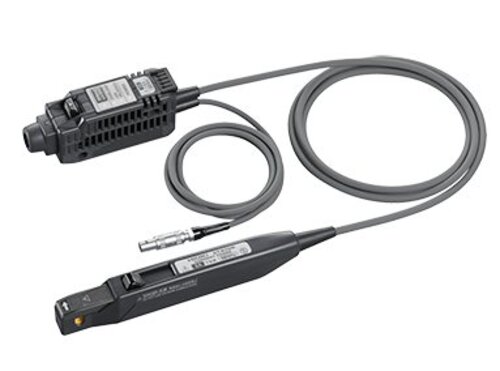

Hioki-CT6700 CURRENT PROBE, DC to 50 MHz, 5 Arms
High S/N characteristic ideal for ultra low 1 mA order current waveformsClearly Observe Even 1 mA Waveforms
Key Features and Functions
- Wide band: DC to 50 MHz (-3 dB)
- High S/N characteristic ideal for ultra low 1 mA order current waveforms
- Connect directly to an oscilloscope’s BNC input terminal
Documents and Software:
Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The CT6700 is a high-sensitivity current probe that offers a wide DC to 50 MHz bandwidth and 5A of continuous input, and applications include capturing transient current signals from switching power supplies, inverters, and motor controllers. The probe is designed with a high permeability magnetic shield to reduce the effects of electric fields, making it ideal for measuring low currents or nearby high-current lines.
Key Specifications:
- Frequency bandwidth: DC to 50 MHz (-3 dB)
- Rise time: 7.0 ns or shorter
- Noise level: 60 μA rms typical, 75 μA rms max (for 30 MHz band measuring instrument)
- Continuous allowable input: 5 A rms (DC, and sine wave, requires derating at frequency)
- Max. allowable peak input: ±7.5 A peak (non-continuous)
- Amplitude accuracy: Typ.: ±1% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms)
- Guaranteed: ±3% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms)
- Output rate: 1 V/A (The output of this probe is internally terminated, so connect to voltage input equipment with high input impedance such as 1MΩ)
- Measurable conductors: Insulated conductor
- Core diameter: φ 5 mm (0.20 in)
