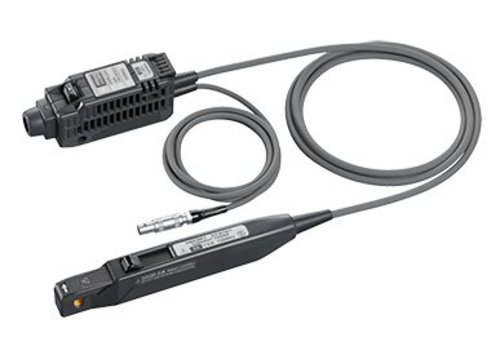

Hioki-CT6701 CURRENT PROBE, DC to 120 MHz, 5 Arms
High S/N characteristic ideal for ultra low 1 mA order current waveformsClearly Observe Even 1 mA Waveforms
Key Features and Functions
- Wide band: DC to 120 MHz (-3 dB)
- High S/N characteristic ideal for ultra low 1 mA order current waveforms
- Connect directly to an oscilloscope’s BNC input terminal
Documents and Software:
Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The CT6701 is a high-sensitivity current probe that offers a wide DC to 120 MHz bandwidth and 5A of continuous input, and applications include capturing transient current signals from switching power supplies, inverters, and motor controllers.
The probe is designed with a high permeability magnetic shield with low insertion loss to reduce derating that may result from increased sensor head heating caused by eddy currents, making it ideal for measuring current of low impedance circuits and waveforms that include high frequency components.
Key Specifications:
- Frequency bandwidth: DC to 120 MHz (-3 dB)
- Rise time: 2.9 ns or shorter
- Noise level: 60 μA rms typical, 75 μA rms max (for 30 MHz band measuring instrument)
- Continuous allowable input: 5 A rms (DC, and sine wave, requires derating at frequency)
- Max. allowable peak input: ±7.5 A peak (non-continuous)
- Amplitude accuracy: Typ.: ±1% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms)
- Guaranteed: ±3% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms)
- Output rate: 1 V/A (The output of this probe is internally terminated, so connect to voltage input equipment with high input impedance such as 1MΩ)
- Measurable conductors: Insulated conductor
- Core diameter: φ 5 mm (0.20 in)
Hioki flat bandwidth current probes are best-in-class current sensors for use with Memory HiCorders and high performance oscilloscopes. The CT6701 is a high-sensitivity current probe that offers a wide DC to 120 MHz bandwidth and 5A of continuous input, and applications include capturing transient current signals from switching power supplies, inverters, and motor controllers.
The probe is designed with a high permeability magnetic shield with low insertion loss to reduce derating that may result from increased sensor head heating caused by eddy currents, making it ideal for measuring current of low impedance circuits and waveforms that include high frequency components.
Key Specifications:
- Frequency bandwidth: DC to 120 MHz (-3 dB)
- Rise time: 2.9 ns or shorter
- Noise level: 60 μA rms typical, 75 μA rms max (for 30 MHz band measuring instrument)
- Continuous allowable input: 5 A rms (DC, and sine wave, requires derating at frequency)
- Max. allowable peak input: ±7.5 A peak (non-continuous)
- Amplitude accuracy: Typ.: ±1% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms)
- Guaranteed: ±3% rdg. ±1 mV (DC, 45 to 66 Hz sine wave, 0 to 5 A rms)
- Output rate: 1 V/A (The output of this probe is internally terminated, so connect to voltage input equipment with high input impedance such as 1MΩ)
- Measurable conductors: Insulated conductor
- Core diameter: φ 5 mm (0.20 in)
