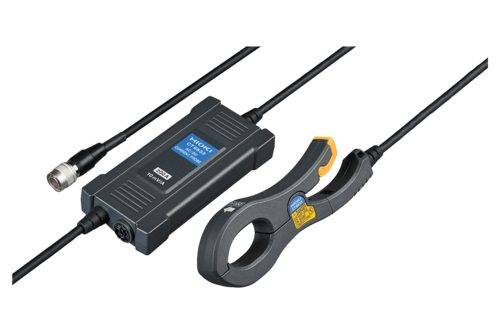

Hioki-CT6833 AC/DC Current probe, frequency bandwidth DC to 50 kHz, 200 A AC/DC rated, 20 mm core diameter, ME15W terminal, 5m cable
Slim Clamp Design, Measure AC/DC Current with High Accuracy, For Vehicle Power Testing
Key Features and Functions
- Rated current: 200 A AC/DC
- Frequency bandwidth: DC to 50 kHz
- Measurement accuracy DC: ±0.07% rdg. ±0.01% f.s.
- Operating temp range: −40°C to 85°C, perfect for vehicle testing
- Clamp conductor diameter: φ20 mm
- Choose from 5 m/10 m cable length
The AC/DC Current Probe CT6833 features a 50% smaller size while delivering precise and reliable performance across a wide temperature range. Perfect for automotive testing, it simplifies installation in tight spaces, enhances measurement accuracy, and improves testing efficiency. Experience innovation that saves time and increases accuracy!
Half the Size, Maximum Precision
The slim design ensures easy installation even in tight spaces. Complex tasks in the engine room become simple and efficient, dramatically reducing preparation time for fuel efficiency and performance testing. Not only does it reduce setup time, but it also minimizes the risk of sensor damage from forced clamping between narrow spaces. Fully compliant with the WLTP and SAE J1634 standards, it provides precise AC/DC current measurements up to 200 A with an impressive DC accuracy of 0.07%.
The AC/DC Current Probe CT6833 features a 50% smaller size while delivering precise and reliable performance across a wide temperature range. Perfect for automotive testing, it simplifies installation in tight spaces, enhances measurement accuracy, and improves testing efficiency. Experience innovation that saves time and increases accuracy!
Half the Size, Maximum Precision
The slim design ensures easy installation even in tight spaces. Complex tasks in the engine room become simple and efficient, dramatically reducing preparation time for fuel efficiency and performance testing. Not only does it reduce setup time, but it also minimizes the risk of sensor damage from forced clamping between narrow spaces. Fully compliant with the WLTP and SAE J1634 standards, it provides precise AC/DC current measurements up to 200 A with an impressive DC accuracy of 0.07%.
