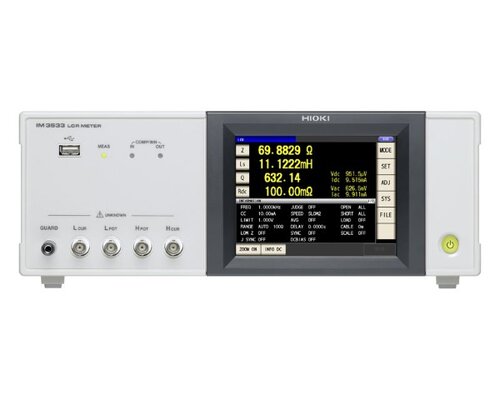

Hioki-IM3533 LCR METER, 1 mHz to 200 kHz
From R&D Applications to Windings, Coil and Transformer Manufacturing
Key Features and Functions
- ±0.05% accuracy with wide measurement range (DC, 1mHz to 200kHz, 5mV to 5V, 10uA to 50mA)
- Non-stop testing over mixed measurement conditions such as C-D and ESR at 10 times the speed of previous models
- Built-in low impedance high precision mode effective for testing low inductance or the ESR of aluminum electrolysis capacitance
- Dedicated modes for measuring transformer winding ratio, mutual inductance and temperature compensated DCR
- Frequency sweep testing (IM3533-01 only)
- 2m/4m cable setting in addition to the standard 0m/1m
- Touch screen with intuitive operation
Documents and Software:
Stock
Typically on stock
Quick Delivery
Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components. The IM3533 series are Hioki’s first LCR meters to offer turn ratio, mutual inductance and inductance difference measurements of transformers and coils, and are integrated with an internal DC bias to facilitate HDMI compliance testing.
Key Specifications:
- Measurement modes IM3533:
- LCR (Measurement with single condition), Transformer testing (N, M, ΔL), Continuous testing(Continuous measurement under saved conditions) (LCR mode):
- Measurement modes IM3533-01:
- LCR (Measurement with single condition), Transformer testing (N, M, ΔL), Analyzer (sweep testing), Continuous Testing (LCR/Analyzer mode)
- Measurement parameters: Z, Y, θ, X, G, B, Q, Rdc (DC resistance), Rs (ESR), Rp, Ls, Lp, Cs, Cp, D (tanδ), N, M, ΔL, T
- Measurement range: 100 mΩ to 100 MΩ, 10 ranges (All parameters defined in terms of Z.)
- Displayable range:
- Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp : ± (0.00000 [unit] to 9.99999G [unit]) Real value display for Z and Y only
- θ: ± (0.000° to 180.000°), D: ± (0.00000 to 9.99999)
- Q: ± (0.00 to 99999.9), Δ%: ± (0.0000% to 999.999%), T: -10.0°C to 99.9°C
- Basic accuracy: Z : ±0.05% rdg. θ: ±0.03°
- Measurement frequency: 1 mHz to 200 kHz (5 digits setting resolution, minimum resolution 1 mHz)
- Measurement signal level:
- [Normal mode]
- V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps
- CC mode: 10 μA to 50 mArms, 10 μArms steps
- [Low impedance high accuracy mode]
- V mode, CV mode: 5 mV to 2.5 Vrms, 1 mVrms steps
- CC mode: 10 μA to 100 mArms, 10 μArms steps
- Output impedance: Normal mode: 100 Ω, Low impedance high accuracy mode: 25 Ω
- Display: 5.7-inch touch-screen color TFT, display can be set to ON/OFF
- Measurement time: 2 ms (1 kHz, FAST, display OFF, representative value)
- Functions: DC bias measurement, DC resistance temperature compensation (converted reference temperature display), Comparator, BIN measurement (classify function), Panel loading/saving, Memory function
- Interfaces:
- EXT I/O (Handler), USB communication (high-speed), USB memory
- Optional: Choose from RS-232C, GP-IB, or LAN
