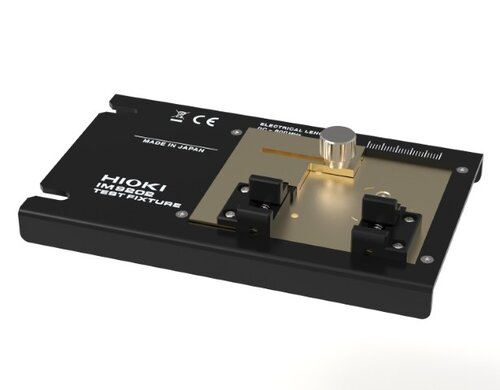

Hioki-IM9202 TEST FIXTURE

All-In-One Test Fixture for High Frequency 600 MHz Testing of a Diverse Range of Components

Key Features and Functions

  • Test fixture for IMPEDANCE ANALYZER IM7580 Series
  • High frequency testing up to 600 MHz
  • Test the impedance of devices in a diverse range of shapes and sizes, including leaded/though-hole devices, SMD, and RFID and NFC chips
  • Aids in properly identifying self-resonance frequency (SRF) and equivalent series resistance (ESR) to validate component performance

Documents and Software:

Product Number:

Hioki-IM9202

Manufacturer:

Hioki

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

Hioki LCR Meters and Impedance Analyzers range from DC to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM9202 Test Fixture supports high frequency testing up to 600 MHz when paired with the IM7580 Impedance Analyzer series, and delivers a unique staging mechanism that lets you validate components and devices in various shapes and sizes, including RFID and NFC chips.

The Test Fixture Stand IM9200, the Adapter IM9906, and the Calibration Kit IM9905 (sold separately) are required when using the Test Fixture IM9202 with the Hioki IM7580 series.

Basic specifications

  • Frequency range: DC to 600 MHz
  • Measurable DUT:
    • LEADED
      • Axial
      • Distance between leads (component length): 1 mm to 25 mm (0.04 in. to 0.98 in.)
      • Lead length: 2 mm to 10 mm (0.08 in. to 0.39 in.)
      • Height to lead: 2.5 mm or shorter (0.10 in. or shorter)
      • Radial
      • Distance between leads: 2 mm to 26 mm (0.08 in. to 1.02 in.)
      • Lead length: 2 mm or longer (0.08 in. or longer)
    • SMD
      • Component length: 1.6 mm to 23 mm (0.06 in. to 0.91 in.)
      • Component width: 0.8 mm or longer (0.03 in. or longer)
      • Component height: 0.65 mm or longer (0.03 in. or longer)
      • Electrode structure: 2-terminal connection to side electrodes
  • Maximum voltage: ±42 Vpeak (AC+DC)
  • Supported units: IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587
  • Accessories: H-side lead component clip ×1, L-side lead component electrode ×1, L-side SMD electrode ×1, SMD open correction jig ×1, Short plate ×1, Brush for cleaning ×1, Carrying case ×1, Instruction manual ×1
