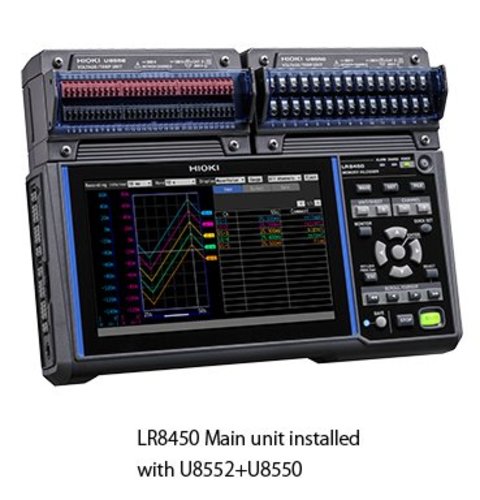

Hioki-LR8450 MEMORY HiLOGGER
1 ms Sampling Portable Logger Expandable to 120 Channels with Your Choice of Plug-in Input Modules
Key Features and Functions
- Expandable to 120 ch with wired/plug-in units
- Record voltage output from pressure and other sensors with 1ms sampling speed
- Directly connect strain gauge and measure signals in as fast as 1ms intervals
- Significantly reduced effects from noise let you safely measure in high voltage and high frequency areas such as around inverter motors
Documents and Software:
Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The LR8450 offers 1 ms sampling across up to 120 channels, and can be paired with 5 different types of plug-in input units. New input modules measure strain and distortion, ideal for automotive applications involving the evaluation of vehicle components as well as robotic equipment.
Key Specifications:
- Max. number of connectable modules: 4 plug-in input modules
- Connectable modules (Plug-in modules): U8550, U8551, U8552, U8553, U8554
- No. of measurement channels: Up to 120 ch with plug-in input modules
- Pulse/logic input:
- [Number of ch] 8 ch (common GND, non-isolated, exclusive setting for pulse/logic input for individual channels)
- [Adaptive input format] Non-voltage contact, open collector, or voltage input
- [Count] 0 to 1000 M pulse, 1 pulse resolution
- [Rotational speed] 0 to 5000/n (r/s), 1/n (r/s) resolution, 0 to 300,000/n (r/min.), 1/n (r/min.) resolution, n: Number of pulses per rotation (1 to 1000)
- [Logic input] Records 1 or 0 for each recording interval
- Recording intervals: 1 ms*, 2 ms*, 5 ms* (*: Can be set only when using 1 ms/S modules), 10 ms to 1 hour, 22 selections (Data refresh interval can be set for each unit
- Data storage:
- SD Memory Card/USB Drive (user-selectable)
(Only storage media sold by HIOKI are guaranteed for operation) - LAN interface:
- 100BASE-TX / 1000BASE-T, DHCP, DNS support,
- Functions: Data acquisition, condition settings used with the Logger Utility software, configuring settings and controlling recording using communications commands, FTP server / FTP client, HTTP server, NTP client
- USB interface:
- Series A receptacle × 2: USB 2.0 compliant (USB drive, keyboard, or hub)
- Series mini-B receptacle × 1: Data acquisition, condition settings used with the Logger Utility, configuring settings and controlling recording using communications commands, transferring data from a connected SD Memory Card to a computer
- SD card slot: SD standard-compliant slot × 1 (with SD memory card/SDHC memory card support), Guaranteed-operation options: Z4001, Z4003
- Display: 7 inch TFT color liquid crystal display (WVGA 800 × 480 pixel)
