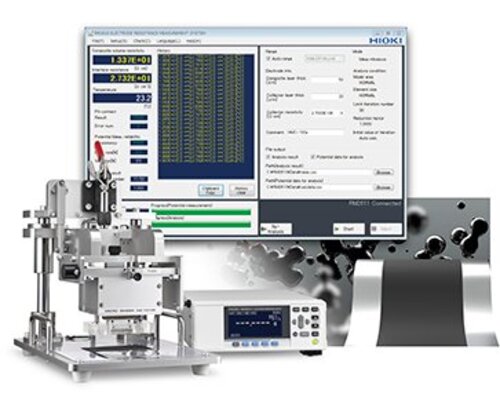

Hioki-RM2610 ELECTRODE RESISTANCE MEASUREMENT SYSTEM
Quantify composite layer resistance and interface resistance in Li-ion battery electrode sheets
Key Features and Functions
- Measure composite resistivity [Ωcm]
- Measure interface resistance between the composite layer and current collector [Ωcm^2]
Documents and Software:
The RM2610 isolates and quantifies the resistance characteristics of electrode sheets, a major component of lithium-ion batteries (LIBs), as two components: the composite layer resistance and the interface resistance between the composite layer and collector. The system allows users to visualize these two quantities by measuring the surface of the electrode sheet with a test fixture that consists of an array of test probes and then using proprietary analytical techniques to quantify them.
Basic specifications
- Measurement target: Positive and negative electrode sheets for rechargeable lithium-ion batteries
- Measurement parameters:
- Composite resistivity [Ωcm]
- Interface resistance (contact resistance) between the composite layer and current collector [Ωcm^2]
- Computation method: Inverse problem analysis of potential distribution using the finite volume method
- Information necessary for computation:
- Composite layer thickness [μm] (for 1 side)
- Current collector thickness [μm]
- Current collector volume resistivity [Ωcm]
- Measurement time:
- Standard conditions: 75 s
- (Contact check + potential distribution measurement + computation)
- Measurement current: 10 μA (min.) to 10 mA (max.)
- Number of probes: 46
- Recommended PC specifications:
- CPU: Intel® Core™ i7, 2.4 GHz, 4 or more threads
- RAM: 8 GB or greater (4 GB required)
- Operating system: Windows 7 (64-bit), 8 (64-bit), 10 (64-bit)
- Temperature measurement function: Measures temperature near the test fixture
