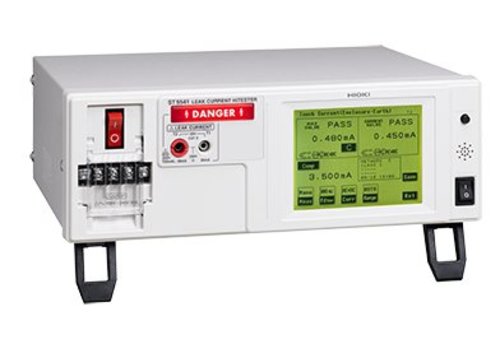

Hioki-ST5541 LEAK CURRENT HiTESTER
Leak Current Measurement, an Essential Part of Electrical Safety (for electrical devices)
Key Features and Functions
- Compliance with Electrical Appliances and Materials Safety Act, JIS/IEC/UL standards
- Uninterrupted polarity switching function dramatically reduces cycle time
- Support for rated currents up to 20 A gives the instrument more than adequate capability for testing products designed to comply with new standards
- Touch panel features simple, interactive operation
- Communications functionality and external I/O support allow automatic testing on production lines
Documents and Software:
To ensure the safe use of electrical products, electrical safety tests such as insulation resistance, withstand voltage, ground resistance, and leakage current must always be conducted. Hioki Leakage Current Testers comply with laws and standards regarding medical electrical equipment as well as non-medical electrical equipment, and can be used to measure leakage current in all types of electrical products from computers to medical equipment.
The ST5541 provides support for standard-compliant networks (excluding medical-use electrical devices).
Basic specifications
- Measurement methods: Measurement of voltage drop across body simulated resistance points, Calculation and display of current values, True rms measurement, Measurement unit floats relative to instrument ground.
- Measurement modes: Leak current measurement, voltage measurement, safety conductor current measurement
- Standards compliance (NW: Body simulated resistance):
- [NW-A] • Electrical Appliances and Materials Safety Act
- [NW-C]
- Measurement of touch current and protective conductor current: IEC 60990:2016
- Electrical equipment for measurement, control, and laboratory use: IEC 61010-1:2010+ A1:2016
- Information technology equipment: IEC60950-1:2005+ A1:2009+ A2:2013
- Audio, video and similar electronic apparatus: IEC 60065:2014
- Personnel Protection Systems for EV: UL 2231-1:2012 (Amended 2016), UL-2231-2:2012 (Amended 2016)
- [NW-D] • For UL: UL 1492:1996 (Amended 2013)
- [NW-G] • Electrical equipment for measurement, control, and laboratory use; current measurement circuits in damp conditions: IEC 61010-1:2010+ A1:2016
- Leak current measurement: Ground leak current, 3 types of contact current, free current measurement, 3 types of enclosure leak current
- Measurement current: DC, AC (true rms, 15 Hz to 1 MHz), AC+DC (true rms, 15 Hz to 1 MHz), AC peak (15 Hz to 1 MHz)
- Measurement ranges:
- DC / AC / AC+DC mode: 50.00 mA/ 5.000 mA/ 500.0 μA/ 50.00 μA
- AC peak mode: 75.0 mA/ 10.00 mA/ 1.000 mA/ 500.0 μA
- Measurement accuracy (current measurement): DC measurement:
- ±2.0% rdg. ±6 dgt. (typ.)
- AC / AC+DC measurement: ±2.0% rdg. ±6 dgt. (15 Hz to 100 kHz, typ.)
- AC peak measurement: ±2.0% rdg. ±6 dgt. (15 Hz to 10 kHz, typ.)
- Interfaces: External I/O, USB 1.1 (communications), RS-232C
To ensure the safe use of electrical products, electrical safety tests such as insulation resistance, withstand voltage, ground resistance, and leakage current must always be conducted. Hioki Leakage Current Testers comply with laws and standards regarding medical electrical equipment as well as non-medical electrical equipment, and can be used to measure leakage current in all types of electrical products from computers to medical equipment.
The ST5541 provides support for standard-compliant networks (excluding medical-use electrical devices).
Basic specifications
- Measurement methods: Measurement of voltage drop across body simulated resistance points, Calculation and display of current values, True rms measurement, Measurement unit floats relative to instrument ground.
- Measurement modes: Leak current measurement, voltage measurement, safety conductor current measurement
- Standards compliance (NW: Body simulated resistance):
- [NW-A] • Electrical Appliances and Materials Safety Act
- [NW-C]
- Measurement of touch current and protective conductor current: IEC 60990:2016
- Electrical equipment for measurement, control, and laboratory use: IEC 61010-1:2010+ A1:2016
- Information technology equipment: IEC60950-1:2005+ A1:2009+ A2:2013
- Audio, video and similar electronic apparatus: IEC 60065:2014
- Personnel Protection Systems for EV: UL 2231-1:2012 (Amended 2016), UL-2231-2:2012 (Amended 2016)
- [NW-D] • For UL: UL 1492:1996 (Amended 2013)
- [NW-G] • Electrical equipment for measurement, control, and laboratory use; current measurement circuits in damp conditions: IEC 61010-1:2010+ A1:2016
- Leak current measurement: Ground leak current, 3 types of contact current, free current measurement, 3 types of enclosure leak current
- Measurement current: DC, AC (true rms, 15 Hz to 1 MHz), AC+DC (true rms, 15 Hz to 1 MHz), AC peak (15 Hz to 1 MHz)
- Measurement ranges:
- DC / AC / AC+DC mode: 50.00 mA/ 5.000 mA/ 500.0 μA/ 50.00 μA
- AC peak mode: 75.0 mA/ 10.00 mA/ 1.000 mA/ 500.0 μA
- Measurement accuracy (current measurement): DC measurement:
- ±2.0% rdg. ±6 dgt. (typ.)
- AC / AC+DC measurement: ±2.0% rdg. ±6 dgt. (15 Hz to 100 kHz, typ.)
- AC peak measurement: ±2.0% rdg. ±6 dgt. (15 Hz to 10 kHz, typ.)
- Interfaces: External I/O, USB 1.1 (communications), RS-232C
