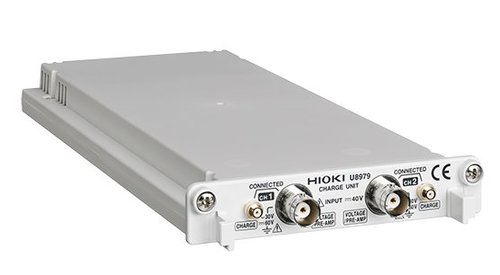

Hioki-U8979 CHARGE UNIT
Key Features and Functions
- Charge input terminal for piezoelectric type acceleration pickup
- Acceleration pickup with built-in preamplifier can also be directly input (BNC terminal)
- Equipped with constant current source for driving preamplifier
- Even measure general voltage signals with high, 16-bit A/D resolution
- Equipped with anti-aliasing filter essential for FFT analysis
- TEDS compatible, automatic sensitivity setting
Stock
Call or email for delivery time
Charge unit, 2 channels, for acceleration measurement, charge output / preamplifier output / voltage output, for the MR6000 and similar products
Basic specifications
- Measurement functions: Number of channels: 2, for acceleration measurement
- Input terminals:
- Input for voltage input / preamplifier built-in: Metal BNC terminal (when voltage input: input resistance 1 MΩ, input capacity 200 pF or less)
- Charge input: Miniature connector (# 10-32 UNF)
- Max. rated voltage to earth: 30 VAC or 60 VDC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage) The voltage input terminal GND and the charge input terminal GND in the same channel are common
- Adaptive converter: Charge output type acceleration detector, Accelerometer with built-in preamplifier
- Measurement range Charge input: (Miniature connector) Input for preamplifier built-in:
- (BNC terminal): 1 (m/s^2) to 200 k (m/s^2) f.s., 12 ranges × 6 kinds
- Charge input sensitivity: 0.1 to 10 pC / (m/s^2)
- Preamplifier Built-in sensor input sensitivity: 0.1 to 10 mV / (m/s^2)
- Amplitude accuracy: ± 2% f.s.
- Frequency characteristic: 1 (1.5) to 50 kHz -3 dB (charge input)
- Low pass filter: 500/5 kHz
- Preamplifier power supply: 3.5 mA ± 20%. 22 V ± 5%
- Maximum input charge: ± 500 pC (high sensitivity side 6 range), 50.000 pC (low sensitivity side 6 range)
- Measurement range Voltage input:
- (BNC terminal): 10 mV to 40 V f.s., 12 ranges, DC amplitude accuracy: ± 0.5% f.s.
- Frequency characteristics: DC to 50 kHz -3 dB (when DC-coupled), 1 Hz to 50 kHz -3 dB (when AC-coupled)
- Low pass filter: 5/500/5 kHz, Input coupling: AC/DC/GND
- Max. allowable voltage: 40 V DC
- Measurement resolution: 1/25000 of measurement range (using 16-bit A/D conversion)
- Highest sampling rate: 200 kS/s
- Anti-aliasing filter: Built-in filter for eliminating aliasing phenomenon (aliasing distortion) in FFT operation (Cutoff frequency automatic setting / OFF)
- TEDS: IEEE 1451.1.4 class 1 compatible (Reading sensor information, corresponding to automatic setting of sensitivity)
