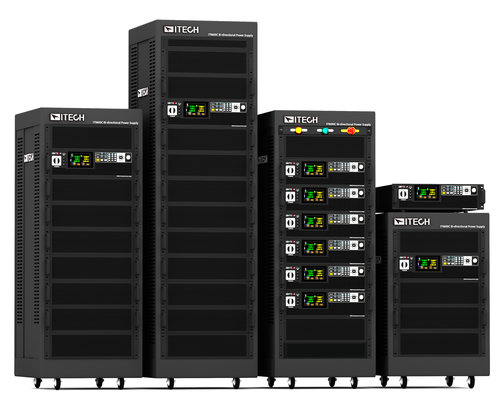

ITECH IT66252C-2250-600 Bidirectional Dual Channel Programmable DC Power Supply (2250 V, +/-600 A, +/-252 kW , 27U)
DC Output Modes:
- CV, CC, Battery Simulation, I-V simulation, adjustable output impedance
DC Load Modes:
- CC, CR, CW, Battery Test
Feature set:
- Bidirectional, integrating power supply and e-load in one unit
- Independent dual-channel design in 3U unit, and channels can be connected in series or parallel
- Each channel can be a DC-load or DC-supply
- High power density, up to 42kW in 3U
- High efficient power regeneration
- Master-slave current equalizing, output max. 10 MW in parallel, no performance lost
- 5-inch touch screen with intuitive GUI
- Adjustable output impedance
- High precision ≤0.03%+30mA
- Dynamic response ≤200us
- Rise time ≤1ms
Functions:
- Supports battery simulation with BSS2000 software
- Battery test function, supports battery charge/discharge mode
- Accurately simulate the IV characteristic output of Si, GaAs and other solar panels
- Built-in standard multi-channel solar array simulation software
- Fuel cell simulation with FCS3000 software
- List function, dynamic working condition simulation with tens of millions of points
- Built-in IEC 61000-4-17/IEC 61000-4-29 waveforms
- Built-in 9 standard automotive voltage curves, including LV123, LV148, ISO21498-2 and other
Connectivity:
- Standard:
- USB (USB-TMC/USB-VCP)
- LAN (Rawsocket/Modbus-TCP, Profinet, VNC, VXI-11, Web, Telnet)
- CAN 2.0B (CANopen, CAN2.0)
- Digital IO
- Optional:
- GPIB, EtherCAT, Analog and RS232
Documents and Software Solutions:
IT6600C series DC power supply is a new generation graphical bidirectional DC power supply. It adopts a touch screen design and intuitive GUI, making parameter setting and waveform editing simpler and more efficient. It adopts advanced third-generation SiC technology.
A 3U height single unit can output 21kW each in dual channels. If the two independent channels are connected in series/parallel, it can reach maximum power 42kW.
The two outputs can be freely selected as load or supply.
Since one unit can cover the output range of 3-5 normal power supplies, it can be applied to various applications requiring high voltage or high current.
IT6600C series is not only a power supply, but also an excellent electronic load. It can not only output power as a DC power supply, but also act as a DC electronic load, absorbing power and feeding clean power back to the grid to realize energy recycling. IT6600C series brings you a new experience during the high-power complex testing in the fields of automobiles, energy storage, industry, green energy and so on and provides strong support for R&D, verification, production, etc.
IT6600C series DC power supply is a new generation graphical bidirectional DC power supply. It adopts a touch screen design and intuitive GUI, making parameter setting and waveform editing simpler and more efficient. It adopts advanced third-generation SiC technology.
A 3U height single unit can output 21kW each in dual channels. If the two independent channels are connected in series/parallel, it can reach maximum power 42kW.
The two outputs can be freely selected as load or supply.
Since one unit can cover the output range of 3-5 normal power supplies, it can be applied to various applications requiring high voltage or high current.
IT6600C series is not only a power supply, but also an excellent electronic load. It can not only output power as a DC power supply, but also act as a DC electronic load, absorbing power and feeding clean power back to the grid to realize energy recycling. IT6600C series brings you a new experience during the high-power complex testing in the fields of automobiles, energy storage, industry, green energy and so on and provides strong support for R&D, verification, production, etc.
