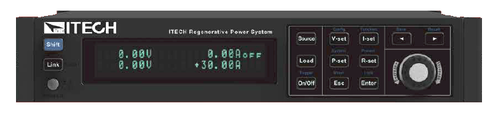

ITECH IT-M3625 Regenerative Power System (400 W, 600 V, 3 A)

DC Output and Load Ratings:

  • Maximum 400 W
  • Maximum Output voltage: 0-600 V
  • Current: 0-3 A

DC Output Modes:

  • CV, CC, Setable Output Resistance,  Battery Simulation

DC Load Modes:

  • CV, CC, CR, CP, Combination modes, Battery Test

Feature set:

  • Bidirectional enegy flow between the DUT and the AC grid
  • Source and Sink function
  • Built-in arbitrary waveform generator
  • Battery Simulation
  • High resolution, high precision and high stability
  • Multi-channel independent control up to 16x16 channels
  • Parallel connection
  • Power failure protection
  • Output resistance setting function
  • OCP/under current protection /OVP/OTP/OPP/UVP, grid fault protection and fault storage

Connectivity:

  • Optional LAN/USB/CAN/GPIB and Analog interface

Documents and Software Solutions:

Product Number:

IT-M3625

Manufacturer:

ITECH

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

ITECH IT-M3600 Series Regenerative Power System integrates two devices in one. It is composed of a DC power supply and a regenerative DC load, to realize bidirectional features and multi-functions. Working as DC load, it’s unique regeneration function can convert the absorbed DC power into AC power and feedback into local power grid. The DC power supply has wide auto-range to meet various testing demand. IT-M3600 combines both devices into a smart solution to make testing more convenient.

IT-M3600 series is only 1/2 1U size. The smart modular design meets customers different testing demands. Independent multi-channel functions, which support 16x16 channels of paralleling or synchronization connections. The user can freely configure each channel parameter. With battery simulation function, it’s the perfect solution for multi-channel battery charging and discharging test with independence operation.

IT-M3600 series is a product with high accuracy output and measurement, suitable for multi-pack battery test, multi-channel power supply test, products QA inspections, R&D verification testing etc.
