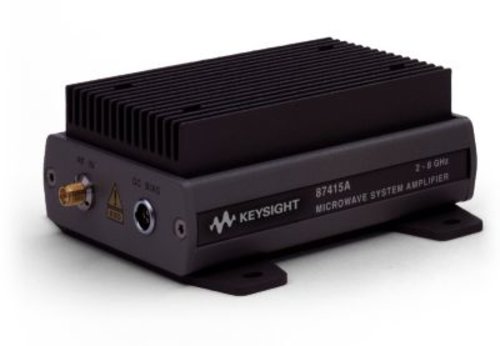

Keysight 87415A 2-8 GHz Remote System Amplifier
Superior RF performance
- Gain of more than 25dB
- P1dB of more than 23dBm
- Noise figure of less than 13dB (typ)
Connectors Type
- Rf connectors: 2.4mm(f)
Bias Option
- +12V@900mA
- Works with 87421A 25W Power Supply
Stock
Call or email for delivery time
The Keysight 87415A microwave component amplifier brings compact, reliable gain block performance to systems integrators and microwave designers. With 25 dB minimum gain and over 23 dBm output power from 2 to 8 GHz, this amplifier offers output power where it is needed: at the test port.
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Description
Reviews
Query on the Item
The Keysight 87415A microwave component amplifier brings compact, reliable gain block performance to systems integrators and microwave designers. With 25 dB minimum gain and over 23 dBm output power from 2 to 8 GHz, this amplifier offers output power where it is needed: at the test port.
