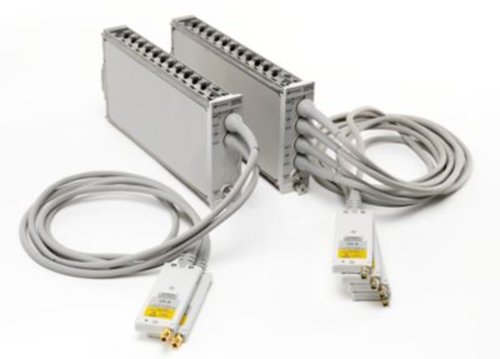

Keysight N1055A 35/50 GHz, 2/4 Port, Electrical Remote Sampling Head with TDR/TDT
additional images:
Key Features
- Bandwidth options: 35 or 50 GHz (upgradable)
- Edge speed (10-90%, typical): 18 ps (35 GHz) or 7 ps (50 GHz)
- Channel options: 2 or 4 per module (upgradable) with independent skew control and up to 16 channels per 86100D mainframe
- Ultra-thin remote head: 1.6 m phase-stable cable, 2.92 mm (35 GHz) or 1.85 mm (50 GHz) connectors, and integrated 67 GHz diode limiters for ESD/EOS protection
- TDR fixture de-embedding removes effects of fixtures, cables or probes connected between remote heads and DUT
Addtional documents and Software Solutions:
Stock
Call or email for delivery time
- N1027A-1CL cable management clips (6 at yellow, pink, blue, green)
- N1027A-2CL 2 remote head clips
- 8710-1765 torque wrench 8 lb-in, 5/16 in
- 85138-60002 1.85 mm load, male for each 50 GHz channel with female connector
- 85138-60001 1.85 mm load, female for each 50 GHz channel with male connector
- 00902-60003 3.5 mm load, male for each 35 GHz channel with female connector
- 00902-60004 3.5 mm load, female for each 35 GHz channel with male connector
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Description
Reviews
Query on the Item
- N1027A-1CL cable management clips (6 at yellow, pink, blue, green)
- N1027A-2CL 2 remote head clips
- 8710-1765 torque wrench 8 lb-in, 5/16 in
- 85138-60002 1.85 mm load, male for each 50 GHz channel with female connector
- 85138-60001 1.85 mm load, female for each 50 GHz channel with male connector
- 00902-60003 3.5 mm load, male for each 35 GHz channel with female connector
- 00902-60004 3.5 mm load, female for each 35 GHz channel with male connector
