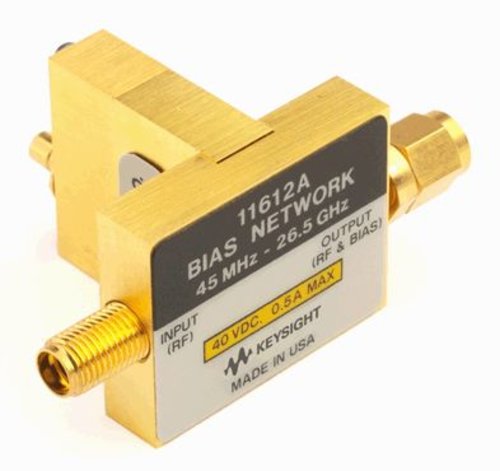

Keysight 11612A Bias network
- Frequency Range: 45 MHz to 26.5 GHz
- Insertion loss (dB): 0.8 (<12.4 GHz), 1.3 (<26.5 GHz)
- Maximum SWR (dB): 1.22 (<8 GHz), 1.29 (<18 GHz), 1.5 (<26.5 GHz)
- Impedance: 50 ohms
- RF Power: +24 dBm max
- Bias current: 500 mA
- Bias voltage: 40 V
- Standard connectors: RF input-3.5mm (f), RF output-3.5mm (m), DC bias-SMB (m)
Stock
Call or email for delivery time
The Keysight 11612A broadband high power bias network can be used in a wide variety of biasing applications for test and measurement requirements in laboratory and production environments. Bias networks provide the means of supplying DC bias to the center conductor of the coax connector for your device while blocking the DC to the RF port.
- Frequency Range: 45 MHz to 26.5 GHz
- Insertion loss (dB): 0.8 (<12.4 GHz), 1.3 (<26.5 GHz)
- Maximum SWR (dB): 1.22 (<8 GHz), 1.29 (<18 GHz), 1.5 (<26.5 GHz)
- Impedance: 50 ohms
- RF Power: +24 dBm max
- Bias current: 500 mA
- Bias voltage: 40 V
- Standard connectors: RF input-3.5mm (f), RF output-3.5mm (m), DC bias-SMB (m)
- Cable: SMB (f) to BNC (m) included
- Temperature: Warranted performance over 0 to 55 degrees C unless otherwise noted.
