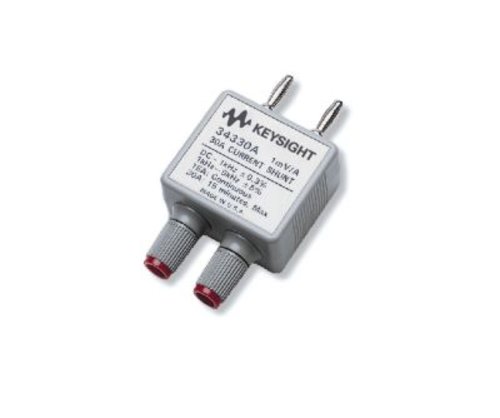

Keysight 34330A Current Shunt for DMMs, 30 Amp
- Current range: 15 A continuous
- Maximum current: 30 A for 15 minutes maximum
- Maximum voltage: 30 Vac and 60 Vdc
- Accuracy: 0 .3% from dc to 1 kHz
- Accuracy: 5% from 1 kHz to 5 kHz at 10A
- Termination: dual banana plugs
Stock
Call or email for delivery time
The Keysight 34330A current shunt is a precision 0.001 ohm resistor housed in a plastic case surrounded by epoxy. Output is 1mV per A of current passing through the shunt. The current to be measured is connected to the shunt via binding posts.
The Keysight 34330A is compatible with the Keysight 34460A, 34461A, 34401A, 34405A, 34410A, 34411A, L4411A and 3458A DMMs.
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Description
Reviews
Query on the Item
The Keysight 34330A current shunt is a precision 0.001 ohm resistor housed in a plastic case surrounded by epoxy. Output is 1mV per A of current passing through the shunt. The current to be measured is connected to the shunt via binding posts.
The Keysight 34330A is compatible with the Keysight 34460A, 34461A, 34401A, 34405A, 34410A, 34411A, L4411A and 3458A DMMs.
