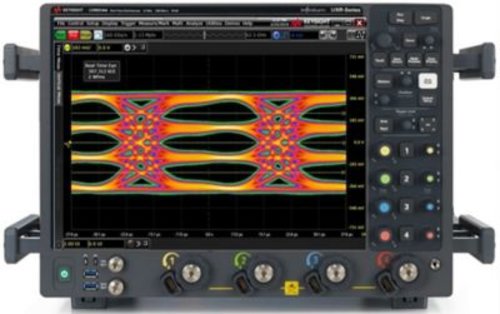

Keysight D9010CEIC OIF-CEI 4.0 Compliance Application for Infiniium Real-Time Oscilloscopes
Comprehensive measurement and debug solution
- Performs PAM4 and NRZ measurements as outlined in the OIF-CEI 4.0 specification
- Makes nearly 140 tests
- Level-based (noise, linearity), eye-based (EW6, EH6), jitter, and return loss tests
Flexible and extensible
- Operates on the Keysight UXR and Z-Series real-time oscilloscopes
- Automatic HTML report generation
- Test all or selected parameters to compliance limits or custom limits
Compatibility
- UXR and Z-Series real-time oscilloscopes
Demand for increased network bandwidth in data centers continues to grow. Pulse Amplitude Modulation (PAM) is a multi-level signaling format that is enabling technology to help address this need.
The Keysight D9010CEIC OIF-CEI 4.0 Compliance Application for Infiniium Real-Time Oscilloscopes is designed to accurately and quickly characterize PAM4 and NRZ electrical signals and address PAM and NRZ measurement needs as outlined in the standard.
Performing PAM4 and NRZ measurements as per requirements of developing industry standards can be challenging and difficult. You can save time and maximize the accuracy of your PAM4 measurements by using the Keysight D9010CEIC OIF-CEI 4.0 Compliance Application with your Z-Series real-time oscilloscope. This tool will allow you to measure your Pulse Amplitude Modulation 4-Level (PAM4) and NRZ design according to the measurement requirements detailed in the OIF-CEI 4.0 standard.
Demand for increased network bandwidth in data centers continues to grow. Pulse Amplitude Modulation (PAM) is a multi-level signaling format that is enabling technology to help address this need.
The Keysight D9010CEIC OIF-CEI 4.0 Compliance Application for Infiniium Real-Time Oscilloscopes is designed to accurately and quickly characterize PAM4 and NRZ electrical signals and address PAM and NRZ measurement needs as outlined in the standard.
Performing PAM4 and NRZ measurements as per requirements of developing industry standards can be challenging and difficult. You can save time and maximize the accuracy of your PAM4 measurements by using the Keysight D9010CEIC OIF-CEI 4.0 Compliance Application with your Z-Series real-time oscilloscope. This tool will allow you to measure your Pulse Amplitude Modulation 4-Level (PAM4) and NRZ design according to the measurement requirements detailed in the OIF-CEI 4.0 standard.
