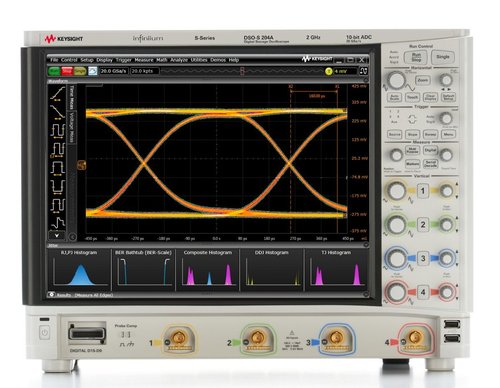

Keysight DSOS204A Oscilloscope - Infiniium S Series 2 GHz 4 channel
Key Features and Functions
- 2 GHz bandwidth (upgradable)
- 4 analog channels
- Capture a longer signal trace with 20 GSa/s maximum sample rate and 50 Mpts/channel of standard memory
- Get superior signal integrity with system ENOB of 8.1 bits and 10-bit analog-to-digital converter (ADC)
- Gain increased usability with the multi-touch supported 15 inch capacitive touch screen and standard solid state drive for fast boot and high reliability
- Access a wide range of protocol, compliance, and analysis software
Documents and Software Solutions:
Infiniium S-Series
The Standard for Superior Measurements
Whether you must debug your latest design or verify compliance, it is critical that your oscilloscope displays a true representation of your signal. This requires world-class signal integrity, and Infiniium SSeries oscilloscopes were designed with that in mind. The S-Series provides a superior time base, front-end, and ADC technology blocks. This gives you a platform with up to 16 bits of resolution, low noise, low jitter, and high ENOB – giving you visibility into the true performance of your device.
Infiniium S-Series Overview
Infiniium S-Series oscilloscopes incorporate innovative technology designed to deliver superior measurements. Cutting edge hardware and a broad suite of software work together to give you unmatched measurement capability. Our 10- bit ADC and low-noise front-end work together to provide up to 8 GHz of performance with fantastic signal integrity. Improve noise performance even more using high resolution mode, which can achieve up to 16 bits of vertical resolution. A vast selection of high-speed digital debug tools gives you the best troubleshooting and design tools available on the market. We put all of this in an advanced frame with a solid-state drive for fast boot-up, 15” capacitive touch display for ease of use, and a high-powered motherboard for fast processing. It’s all compatible with a myriad of Keysight probes and applications.
