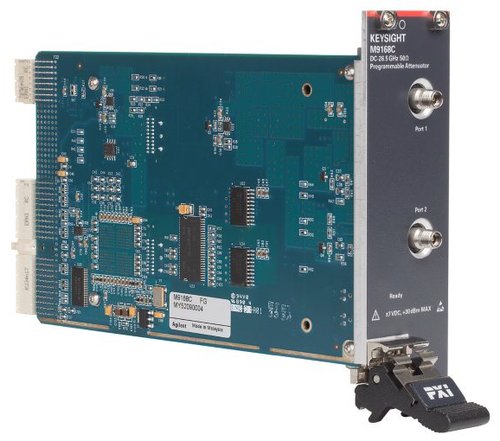

Keysight M9168C PXI-h Programmable Attenuator Module, DC-26.5 GHz
- Guaranteed 0.03 dB insertion loss repeatability through the operating life of up to 5 million cycles
- Broad attenuation range of 0 to 101 dB, with 1 dB step
- High attenuation accuracy and flatness of +0.4 dB at 26.5 GHz
The M9168C is a programmable step attenuator module based on PXI hybrid platform. The M9168C operates from DC to 26.5 GHz with a guaranteed 0.03 dB insertion loss repeatability for each section throughout the 5 million cycles operating life. Superior attenuation accuracy across a wide operating temperature range ensures precise measurements.
M9168C is a signal conditioning module that enhances the measurement accuracy and flexibility of PXI based RF and microwave test systems.
Applications
- RF signal path attenuation simulation
- Engineering verification
- RF receiver sensitivity test
- Adjacent channel interference
Functionality
- Accurate control of RF power levels
Unmatched RF performance
- Guaranteed 0.03 dB insertion loss repeatability throughout the operating life of up to 5 million cycles per section
- Broad attenuation range of 0 to 101 dB with 1 dB, 5 dB and 10 dB step
- High attenuation accuracy with flatness of ±0.4 dB at 26.5 GHz
The M9168C is a programmable step attenuator module based on PXI hybrid platform. The M9168C operates from DC to 26.5 GHz with a guaranteed 0.03 dB insertion loss repeatability for each section throughout the 5 million cycles operating life. Superior attenuation accuracy across a wide operating temperature range ensures precise measurements.
M9168C is a signal conditioning module that enhances the measurement accuracy and flexibility of PXI based RF and microwave test systems.
