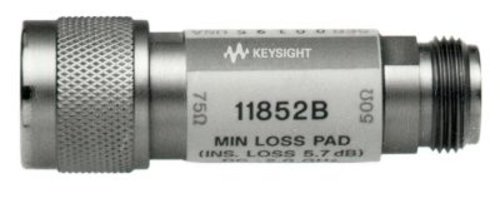

Keysight 11852B Minimum loss pad
Superior RF Performance
- Insertion Loss: 5.7 dB, typical
- Return Loss: > 27 dB
- Electrical Length: 50.2 mm (1.98 in)
- Overall Length: 60.1 mm (2.37 in)
- Diameter: 22.0 mm (0.87 in)
- Reference Plane to Reference Plane Length (nominal): 50.2 mm (1.98 in)
Stock
Call or email for delivery time
The Keysight 11852B is an instrument-grade, 50-ohm type-N female to 75-ohm type-N male adapter. This product is also available in a 50-ohm type-N male to 75-ohm type-N female configuration. The 11852B Option 004 has a 50 Ohm Type-N (m) and 75 Ohm Type-N (f) connector.
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Description
Reviews
Query on the Item
The Keysight 11852B is an instrument-grade, 50-ohm type-N female to 75-ohm type-N male adapter. This product is also available in a 50-ohm type-N male to 75-ohm type-N female configuration. The 11852B Option 004 has a 50 Ohm Type-N (m) and 75 Ohm Type-N (f) connector.
