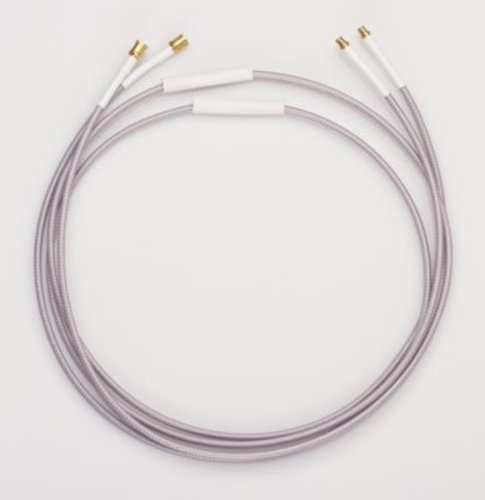

Keysight N5450B InfiniiMax extreme temperature extension cable
Bandwidth:
- > 12 GHz (typical) when used with N5381A
- > 7.5 GHz (typical) when used with E2677A
Operational Temperature Range:
- - 55 to + 150 degree C when used with N5381A
- - 25 to + 80 degree C when with E2677A and other probe heads
Cable Length:
- 36 inches (92 cm)
- The N5450B comes with a pair of matched cables
Industry’s only probing solution for environmental chamber testing, supporting temperatures from – 55 to + 150 degree (Celsius).
- Flat frequency responses at both ends of extreme temperatures.
- Provides 36 inches of flexible reach.
- Minimum test cycles at their maximum temperature ranges. Numbers will increase as the range gets smaller.
- > 250 cycles for N5381A
- > 1000 cycles for E2677A
The N5450B is a replacement of the N5450A. The N5450A will be discontinued in June 2012 and will be supported for 5 years until September 2017. The old and new replacements are 100% form, fit, function and price equivalent to the product it replaces.
Industry’s only probing solution for environmental chamber testing, supporting temperatures from – 55 to + 150 degree (Celsius).
- Flat frequency responses at both ends of extreme temperatures.
- Provides 36 inches of flexible reach.
- Minimum test cycles at their maximum temperature ranges. Numbers will increase as the range gets smaller.
- > 250 cycles for N5381A
- > 1000 cycles for E2677A
The N5450B is a replacement of the N5450A. The N5450A will be discontinued in June 2012 and will be supported for 5 years until September 2017. The old and new replacements are 100% form, fit, function and price equivalent to the product it replaces.
