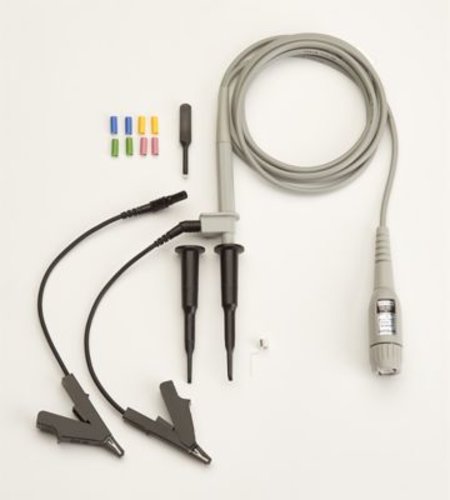

Keysight N7007A Passive probe - 400 MHz, extreme temperature

  • Bandwidth: 400 MHz
  • Attenuation ratio: 10:1
  • Input impedance (@DC): 10 Mohm//15.5 pF
  • Operating temp range: -40 to +85 deg C
  • Operating humidity range: <90% at 40 degC
  • Cable Length: 2 m
  • Max input range: 1 kV CAT II, 600V CAT III

Product Number:

N7007A

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

Many environmental test engineers today are using standard-temperature probes in extreme temperature condition, which causes physical damage to the probe. Another common practice among environmental test engineers is to simply attach long wires at the end of their probes, which significantly degrades measurement performance due to excessive inductance and reduced bandwidth. Keysight addresses this issue with the N7007A single-end passive probe.

The N7007A is a 2-meter long, 10:1 passive probe with an input impedance of 10 MOhm and 400 MHz bandwidth. This probe can withstand temperatures ranging from -40 to +85 °C.

Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item

Many environmental test engineers today are using standard-temperature probes in extreme temperature condition, which causes physical damage to the probe. Another common practice among environmental test engineers is to simply attach long wires at the end of their probes, which significantly degrades measurement performance due to excessive inductance and reduced bandwidth. Keysight addresses this issue with the N7007A single-end passive probe.

The N7007A is a 2-meter long, 10:1 passive probe with an input impedance of 10 MOhm and 400 MHz bandwidth. This probe can withstand temperatures ranging from -40 to +85 °C.
