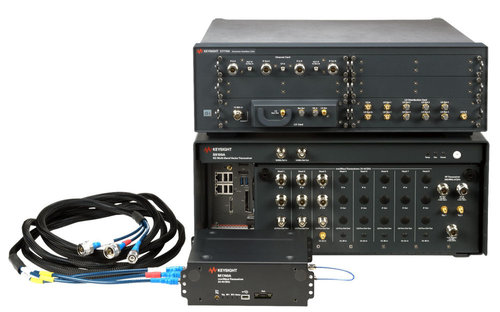

Keysight S9100A 5G Multi-Band Vector Transceiver
Measurement applications and software
The S9100A 5G Multi-Band Vector Transceiver is compatible with Keysight's Signal Studio Pro, VSA and Test Automation Platform. These additional recommended software options can be found in the configuration guide and include:
- N7631C Signal Studio Pro for 5G NR creates sub-6 GHz and millimeter-wave 5GNR waveforms (Also, N7630C for pre-5G, N7608C for custom IQ and OFDM)
- 89600 VSA softwareto demodulate NR and pre-5G waveforms (option BHN), custom IQ (BHK), and custom OFDM (BHF) waveforms
- KS8400A Test Automation Platformallows quick creation of automated test harnesses, for rapid design validation
The S9100A 5G Multi-Band Vector Transceiver leverages Keysight's proven PXI vector transceiver platform to provide:
- Signal Analyzer and Generator providing industry-leading RF performance in a compact modular and scalable design
- Wide bandwidth support for 5G NR waveform generation of up to 1.2 GHz
- High performance mmWave remote transceiver radio heads in a small footprint
- Best-in-class EVM and ACLR in FR1 and FR2 bands over the widest power range
- Simplified measurement set-up in line with 3GPP requirements
- Streamlined high-volume test of 5G NR base stations using Keysight's KS8400A Test Automation Platform
- Cloud analytics compatibility with PathWave™ solution software
Reduced path loss at mmWave frequencies for OTA testing
The solution includes a M1740A mmWave remote radio head with dual bi-directional ports that can be positioned close to the over-the-air (OTA) test chamber reference antenna. This approach enables a user to replace long and lossy mmWave frequency coaxial cable with much lower loss IF coaxial cable to substantially reduce RF path loss by as much as 10dB compared to using a mmWave bench instrument set-up.
The S9100A 5G Multi-Band Vector Transceiver is a streamlined, non-signaling measurement system that enables automated testing of 5G NR infrastructure equipment in both the FR1 (sub-6 GHz) and FR2 (24-44 GHz) spectrum bands. This compact solution enables users to validate 5G RF radio performance in high-volume test in 4G as well as 5G millimeter wave. It offers the precision required for in-band design validation in all the new 5G NR bands. Together with a modular architecture, easy to use API, and Keysight PathWave™ solution software the S9100A reduces your cost of test, and accelerates your time to volume, especially in millimeter wave applications.
