Key Features and Specifications

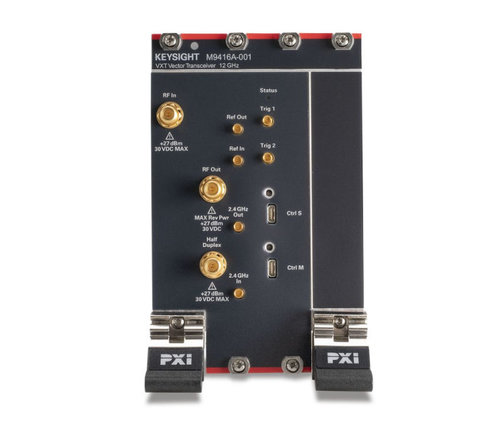

The Keysight M9416A PXIe vector transceiver integrates a VSG and a VSA from 380MHz to 6, 8, or 12 GHz in a 4-slot PXI module with up to 1.2 GHz bandwidth.
- Integrated a vector signal generator and a vector signal analyzer up to 12 GHz in a 4-slot PXIe module
- Built-in 1.2 GHz signal generation and analysis bandwidth
- High output power up to >+20 dBm
- Amplitude accuracy <±0.5 dB for both generator and analyzer
- Excellent SSB phase noise <-130 dBc/Hz at 1 GHz (10 kHz offset)
- <0.3 % EVM of 100 MHz bandwidth OFDM signal for accurate 5G test
More Information:
Availability:
Call or email for delivery time
Key Features and Specifications
The Keysight M9416A PXIe vector transceiver integrates a VSG and a VSA from 380MHz to 6, 8, or 12 GHz in a 4-slot PXI module with up to 1.2 GHz bandwidth.
- Integrated a vector signal generator and a vector signal analyzer up to 12 GHz in a 4-slot PXIe module
- Built-in 1.2 GHz signal generation and analysis bandwidth
- High output power up to >+20 dBm
- Amplitude accuracy <±0.5 dB for both generator and analyzer
- Excellent SSB phase noise <-130 dBc/Hz at 1 GHz (10 kHz offset)
- <0.3 % EVM of 100 MHz bandwidth OFDM signal for accurate 5G test
More Information:
- Further details on keysight.com
