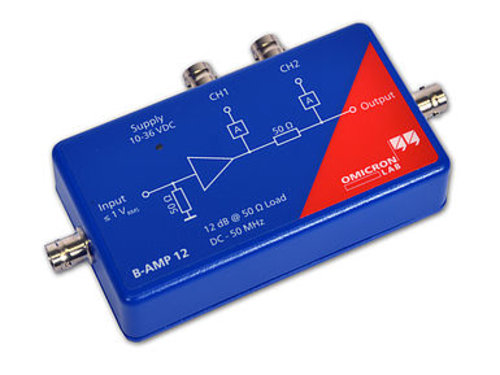

Omicron B-AMP 12 Amplifier
Typical Applications:
- Measuring very low impedance values
- Measure voltage dependent impedance (chip capacitance)
- Use B-AMP 12 to inject more power into circuits during e.g. Loop Gain measurement, Input Impedance measurement or Output Impedance measurement
- Generate more power in noisy environments such as measurements on high-power DC/DC converters or AC/DC converters
Key Features
- Optimized for use with Bode 100
- Flat frequency range: DC – 50 MHz
- Impedance measurement ports
- CE compliant, RoHS compliant
Some Technical Data:
- Gain: 12 dB ±0.25 dB
- Max power: 25 dBm (DC to 50 MHz)
- Input and output impedance: 50 Ω
Stock
Call or email for delivery time
Power Amplifier B-AMP 12
B-AMP 12 is an external power amplifier for the Bode 100. With the B-AMP 12 you can amplify the Bode 100 output signal by 12 dB (= x4) to perform measurements with signal levels up to 25 dBm.
Using the impedance measurement ports of B-AMP 12 you can directly measure impedance with high signal levels.
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Description
Reviews
Query on the Item
Power Amplifier B-AMP 12
B-AMP 12 is an external power amplifier for the Bode 100. With the B-AMP 12 you can amplify the Bode 100 output signal by 12 dB (= x4) to perform measurements with signal levels up to 25 dBm.
Using the impedance measurement ports of B-AMP 12 you can directly measure impedance with high signal levels.
