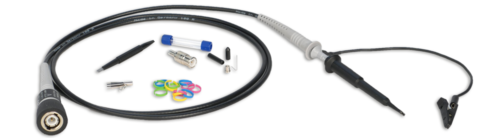

Omicron PML 111O High Impedance Passive Probe 10:1
Key Features
- Perform highly accurate loop gain measurements
- Reduce capacitive loading of your circuit
- Protect the input channels of your Bode 100
Key Features and some technical data:
- Compact 2.5 mm probe design
- 1 MΩ || 12.5 pF input impedance for lowest noise
- Exchangeable gold-plated spring-tip
- Attenuation ratio: 10:1
- Maximum working voltage: 400 V
Stock
Call or email for delivery time
10:1 Probe PML 111O
The PML 111O is a passive 10:1 probe manufactured by PMK, optimized for the use with Bode 100. It features a unique 1 MΩ design, perfectly matched to the ac-coupled inputs of Bode 100. It offers great protection to the inputs of the Bode 100 and a flat frequency response up to 50 MHz. The probes are pre-compensated during production and can be fine-tuned by the user.
Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Description
Reviews
Query on the Item
10:1 Probe PML 111O
The PML 111O is a passive 10:1 probe manufactured by PMK, optimized for the use with Bode 100. It features a unique 1 MΩ design, perfectly matched to the ac-coupled inputs of Bode 100. It offers great protection to the inputs of the Bode 100 and a flat frequency response up to 50 MHz. The probes are pre-compensated during production and can be fine-tuned by the user.
