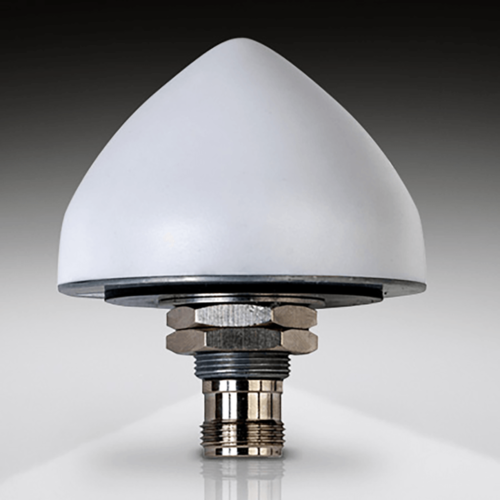

Safran-8230 GNSS OUTDOOR ANTENNA
Key Features and performance
- High bandwidth to receive GNSS signals:
- GPS L1
- GLONASS L1
- BeiDou B1
- Galileo E1
- QZSS L1
- Designed for harsh environments (IP67 rated)
- High out-of-band rejection
- One-year limited warranty
Additional Documents:
The Model 8230 is a high gain (40 dB) GNSS outdoor antenna covering GPS L1, GLONASS L1, BeiDou B1, Galileo E1, and QZSS L1. It uses a three stage low noise amplifier, a mid-section SAW, and a tight pre-filter to protect against saturation by high level sub-harmonics and L-band signals.
The active antenna circuitry uses +5VDC (provided by the Safran timing receiver over the antenna coax). Each antenna is terminated with a type “N” female connector. Its weather-proof housing is IP67 compliant, offering a high degree of protection against dust and water. Its conical radome is made of high impact UV stabilized polycarbonate to minimize ice, snow and debris build-up. It can be mounted in a 19mm diameter (3/4 inch) through hole or via its L-bracket.
