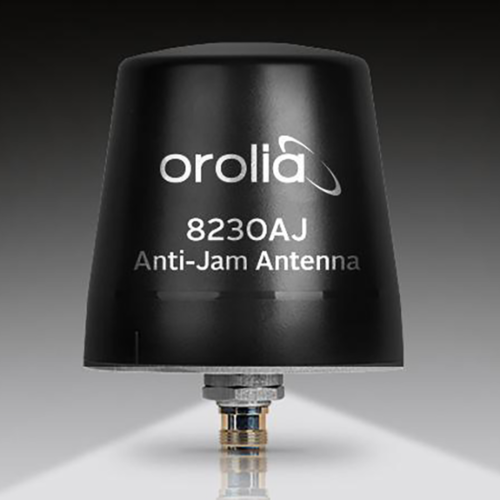

Safran-8230AJ GPS/GNSS ANTI-JAM OUTDOOR ANTENNA
Key Features and performance
The Model 8230AJ is a high gain (40 dB) GNSS outdoor antenna. It uses a three-stage low noise amplifier, a mid-section SAW, and a tight pre-filter to protect against saturation by high level sub-harmonics and L-band signals. The Anti-Jam antenna rejects signals for the lower elevation angles – where most of the interference comes from.
Additional Documents:
The Model 8230AJ is a high gain (40 dB) GNSS outdoor antenna covering GPS L1, GLONASS L1, BeiDou B1, Galileo E1, and QZSS L1. Similar to our proven Model 8230, it uses a three-stage low noise amplifier, a mid-section SAW, and a tight pre-filter to protect against saturation by high level sub-harmonics and L-band signals. The active antenna circuitry uses +5VDC (provided by the Safran timing receiver over the antenna coax).
Similar to the standard Model 8230, this antenna is also terminated with a type “N” female connector and mounts to standard pipes via its own unique L bracket. Making it a drop-in replacement for existing installations. Its weather-proof housing is IP67 compliant offering a high degree of protection against dust and water. Its cylindrical radome is made of high impact UV stabilized polycarbonate to protect against rain, ice, snow and salt spray
The Model 8230AJ is a high gain (40 dB) GNSS outdoor antenna covering GPS L1, GLONASS L1, BeiDou B1, Galileo E1, and QZSS L1. Similar to our proven Model 8230, it uses a three-stage low noise amplifier, a mid-section SAW, and a tight pre-filter to protect against saturation by high level sub-harmonics and L-band signals. The active antenna circuitry uses +5VDC (provided by the Safran timing receiver over the antenna coax).
Similar to the standard Model 8230, this antenna is also terminated with a type “N” female connector and mounts to standard pipes via its own unique L bracket. Making it a drop-in replacement for existing installations. Its weather-proof housing is IP67 compliant offering a high degree of protection against dust and water. Its cylindrical radome is made of high impact UV stabilized polycarbonate to protect against rain, ice, snow and salt spray
