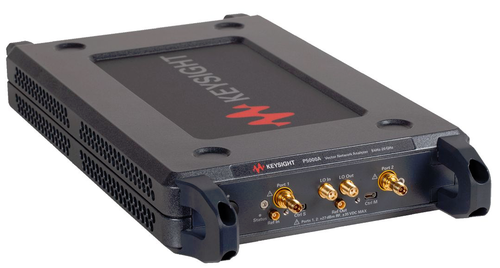

Keysight P5000A Streamline Series USB Vector Network Analyzer, 9 kHz to 4.5 GHz, 2-port

Consider the B-model unless you prefer USB-C connection: P5000B

Key Features

  • Frequency range of 9 kHz to 4.5 GHz
  • Flexible, high-performance compact VNA
  • Choose from a wide range of measurement applications to gain deeper insight into your RF test
  • Features the same intuitive GUI as Keysight’s high-performance PNAs
  • Calibrate quickly with support for all Keysight electronic calibration (ECal) modules

Options for:

  • Basic Pulsed-RF measurements
  • Automatic fixture removal
  • Time domain analysis
  • Noise figure measurements with vector correction
  • Embedded LO capability
  • Gain compression measurements
  • Spectrum analysis
  • Multiport calibrated measurements

Documents and Software Solutions:

Product Number:

P5000A

Manufacturer:

Keysight Technologies

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time

Keysight P500xA Streamline Series USB VNA

The freedom of portable network analysis doesn’t have to mean a compromise in performance. The P50xxA series brings high-end performance and flexibility to the portable Keysight Streamline Series. Gain confidence in your measurements with best-in-class performance offering fast, reliable, and repeatable results. Explore the complete characterization of your devices with a rich portfolio of software applications that transform the compact network analyzer into a complete RF measurement solution.

The P500xA Series, a member of Keysight’s Streamline Series offers the performance required for testing passive components, amplifiers, mixers or frequency converters. The vector network analyzer (VNA) provides best-in-class key specifications such as dynamic range, measurement speed, trace noise and temperature stability. The VNA is packaged in a compact chassis and controlled by an external computer with powerful data processing capabilities and functionalities. The P500xA has the ability to extend the number of test ports by cascading two USB instruments; This flexibility makes an ideal solution to meet a wide range of applications. It is portable, easy to use, and there is zero compromise in performance.

The P500xA utilizes the same measurement science as other Keysight VNAs such as the PNA, ENA and USB VNA. A common software platform makes it easy to choose the right level of performance to match budget and measurement needs. This commonality guarantees measurement consistency, repeatability, and a common remote-programming interface across multiple instruments in R&D and manufacturing.

Description
Additional Informations
Reviews
Query on the Item
Do you have any questions on this item?
Your E-mail Address
My Question:
Please retype the letters shown here
captcha
Description
Reviews
Query on the Item

Keysight P500xA Streamline Series USB VNA

The freedom of portable network analysis doesn’t have to mean a compromise in performance. The P50xxA series brings high-end performance and flexibility to the portable Keysight Streamline Series. Gain confidence in your measurements with best-in-class performance offering fast, reliable, and repeatable results. Explore the complete characterization of your devices with a rich portfolio of software applications that transform the compact network analyzer into a complete RF measurement solution.

The P500xA Series, a member of Keysight’s Streamline Series offers the performance required for testing passive components, amplifiers, mixers or frequency converters. The vector network analyzer (VNA) provides best-in-class key specifications such as dynamic range, measurement speed, trace noise and temperature stability. The VNA is packaged in a compact chassis and controlled by an external computer with powerful data processing capabilities and functionalities. The P500xA has the ability to extend the number of test ports by cascading two USB instruments; This flexibility makes an ideal solution to meet a wide range of applications. It is portable, easy to use, and there is zero compromise in performance.

The P500xA utilizes the same measurement science as other Keysight VNAs such as the PNA, ENA and USB VNA. A common software platform makes it easy to choose the right level of performance to match budget and measurement needs. This commonality guarantees measurement consistency, repeatability, and a common remote-programming interface across multiple instruments in R&D and manufacturing.
