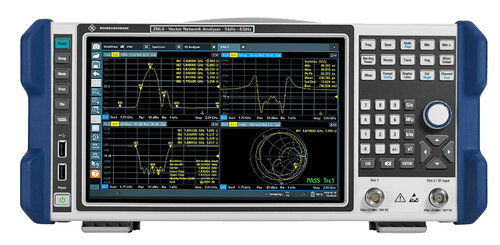

R&S ZNL6-COM Bundled product: Vector-Network Analyzer, 2 ports 5 kHz to 6 GHz, N(f) connectors. Includes ZNL6-B1, ZNL6-B22, ZN-Z135 Calibration kit and 4 years warranty
Key Features and Functions
- Frequency range: 5 kHz to 6 GHz
- Dynamic range:> 120 dB (specified); typ.> 130 dB
- Output power: 0 dBm (specified); typ. + 3 dBm
- Measurement parameters: S parameters (Sxy), wave sizes, wave ratios, impedance parameters (Zxy), admittance parameters (Y), stability factors
- Operating system: Windows 10
- Display: 10.1 ”WXGA color LCD, touchscreen
- Dimensions (W × H × D): 408 mm × 186 mm × 235 mm
- Weight (depending on configuration): ~ 6 - 8 kg
- Includes the following options:
- ZNL6-B1 Spectrum Analyzer Function
- ZNL6-B22 Extended power range down to -40dBm
- ZN-Z135 Calibration kit (Variant .03)
- 4 years warranty and manufacturer calibration coverage on repair
For more information download the ZNL Brochure:
Key Features and Functions
- Frequency range: 5 kHz to 6 GHz
- Dynamic range:> 120 dB (specified); typ.> 130 dB
- Output power: 0 dBm (specified); typ. + 3 dBm
- Measurement parameters: S parameters (Sxy), wave sizes, wave ratios, impedance parameters (Zxy), admittance parameters (Y), stability factors
- Operating system: Windows 10
- Display: 10.1 ”WXGA color LCD, touchscreen
- Dimensions (W × H × D): 408 mm × 186 mm × 235 mm
- Weight (depending on configuration): ~ 6 - 8 kg
- Includes the following options:
- ZNL6-B1 Spectrum Analyzer Function
- ZNL6-B22 Extended power range down to -40dBm
- ZN-Z135 Calibration kit (Variant .03)
- 4 years warranty and manufacturer calibration coverage on repair
For more information download the ZNL Brochure:
- ZNL Handheld Vector Network Analyzer Brochure
- ZNL Handheld Vector Network Analyzer Specification Guide
