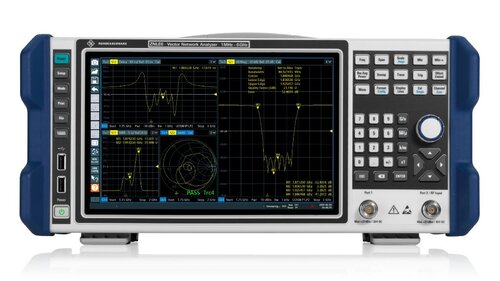

R&S ZNLE14 Vector-Network Analyzer, 2 ports 1 MHz to 14 GHz, N(f) connectors
Key Features and Functions
- Frequency range from 1 MHz to 14 GHz
- Two-port vector network analyzer with a full S-parameter test set for bidirectional measurements on passive components
- High dynamics up to 120 dB (typ.)
- Measurement bandwidths from 1 Hz to 500 kHz
- Fast measurements, i.e. 8.7 ms for 401 points (100 kHz IF bandwidth, 200 MHz span, correction off)
- Compact dimensions (24 cm depth) and low weight (6 kg)
- Standalone device with 10.1 'WXGA touchscreen
- Windows 10 operating system
For more information download the ZNLE Brochure:
Key Features and Functions
- Frequency range from 1 MHz to 14 GHz
- Two-port vector network analyzer with a full S-parameter test set for bidirectional measurements on passive components
- High dynamics up to 120 dB (typ.)
- Measurement bandwidths from 1 Hz to 500 kHz
- Fast measurements, i.e. 8.7 ms for 401 points (100 kHz IF bandwidth, 200 MHz span, correction off)
- Compact dimensions (24 cm depth) and low weight (6 kg)
- Standalone device with 10.1 'WXGA touchscreen
- Windows 10 operating system
For more information download the ZNLE Brochure:
- ZNLE Handheld Vector Network Analyzer Brochure
- ZNLE Handheld Vector Network Analyzer Specification Guide
