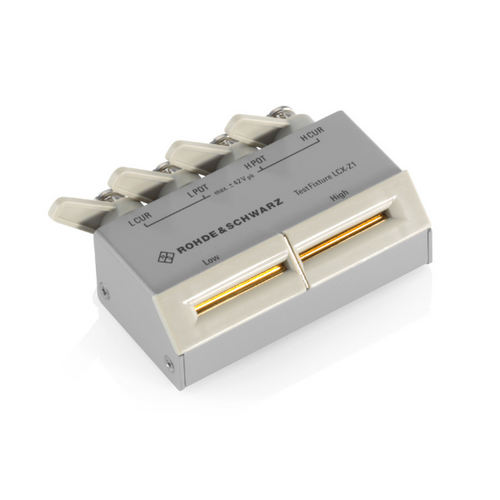

R&S LCX-Z1 Test fixture for axial/radial lead type devices, incl. shorting plate; for R&S LCX meters (accessory)
Test fixture for axial/radial lead type devices, incl. shorting plate; for R&S LCX meters (accessory)
For more information download the LCX Datasheet:
The top-class in component testing
The LCX LCR meters are versatile, extremely accurate and perform measurements quickly. They are ideal for challenging applications in research, development and production. Two instrument models and various options cover applications with a test signal frequency of up to 10 MHz. Internal and external bias functions, comprehensive analysis options and versatile test fixtures expand the wide range of possible applications.
Fast, accurate and versatile
Both LCX models combine high measurement speed, accuracy and versatile measurement capabilities This makes them ideal for standard measurements in development, for material analysis in research as well as for fast production testing With their broad measurement ranges, they also cover applications with extremely low and extremely high impedances
Three measurement times are
- Fast: 15 ms
- Medium: IOO ms
- Slow: 500 ms
The basic accuracy for impedance measurements is 0/0, and for phase measurements ±0.030
Selectable frequency range
All models measure under DC conditions_ The AC range already begins at 4 Hz. The upper frequency limit on the R&SSLCXIOO is 300 kHz. In its base configuration, the is designed for a maximum frequency Of 500 kHz; this frequency limit can, however, be extended to 1 MHz or 10 MHz. This means that the ideal instrument is available for any given application and budget.
