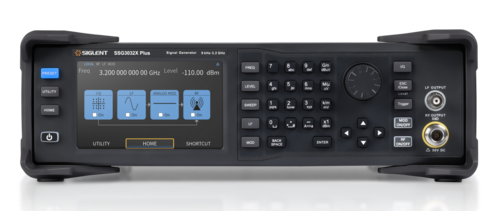

Siglent SSG3032X 9 kHz to 3.2 GHz Signal Generator
Key Features and Functions
- Frequency up to 2.1 GHz/3.2 GHz
- 0.01 Hz frequency setting resolution
- Level output from -110 dBm to +13 dBm
- Maximum level up to +20 dBm (typ.)
- Phase Noise: -117 dBc/ Hz @ 1 GHz, 20 kHz offset (typ.)
- Level accuracy ≤0.7 dB (typ.)
- Provides AM, FM, and PM analog modulation with internal, external or Int+Ext source
- Pulse modulation, on/off ratio ≥68 dBc
- Pulse train generator (option)
- USB-power meter measurement
- 5-inch TFT capacitive touch screen, mouse and keyboard supported
Interfaces and protocols:
- Standard interface include USB Host, USB Device (USB TMC),
- LAN (VXI-11, Socket, Telnet). Optional interface: GPIB
- Web browser remote control on PC and mobile terminals
Documents and Software Solutions:
Product Overview
SIGLENT’S SSG3000X series of signal generators have a frequency range of 9 kHz to 2.1 or 3.2 GHz. They all provide normal analog modulation such as AM, FM, and PM. They also provide pulse modulation and pulse train generator.
The IQE models in addition, when used with baseband generator such as SDG6000X, can generate IQ modulated signals.
With their high accuracy and pure outputs, the SSG3000X series is the right choice for R&D, education, and manufacturing.
