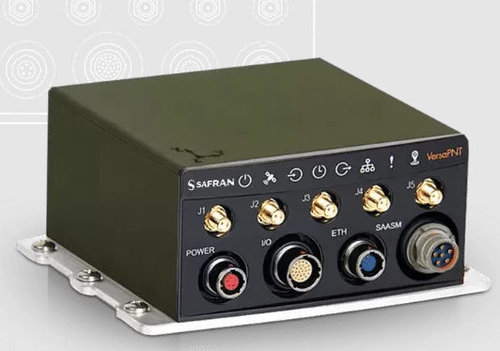

Safran-VERSAPNT Assured Positioning, Navigation and Timing Solution
FEATURES
- GNSS-aided inertial navigation and timing
- Embedded jamming and spoofing detection
- Configurable for multiple vehicle and airframe platforms
- High performance internal time base and inertial sensor to manage potential GNSS loss
- GNSS time and frequency source with NTP/PTP time server
- Ability to integrate future PNT signal sources such as STL, CAN Bus, etc.
- High versatility with software-configurable inputs/outputs
- Network sync, set up and management
- Easy integration, with small footprint and low power consumption
- Compatible with external IMUs
- Victory compatible
- Measurement data is logged internally and streamed through a serial or LAN interface
- Ruggedized (MIL-STD-810G) low size, weight and power
- Conduction-cooled
- Mil-performance connectors
- Standby power mode
SPECS
- Operational Readiness
- 1PPS time of day available (hot start)
- 60 s: 1ms accuracy to UTC
- 200 s: 1µs accuracy to UTC
- Physical
- Size (WxHxD): 5.8” x 2.5” x 5.0” (147.3 x 127.5 x 63.0 mm) VITA 75 compliant
- Weight: 1.0 kg (2.2 lbs)
- Mounting: On a plate, optimized for conduction cooling, 6 through holes
- Power
- Input Voltage: 10-32 VDC
- Typical Power Draw: <25 W (with OCXO)
- Standby mode (only oscillator is powered): 0.4 W, DC power supply must be within 10 – 32 VDC
- Environmental
- Tested to MIL-STD-810G CH1
- Temperature, in operation: -40°C to +71°C with
- OCXO (-10°C to +45°C with mRO-50)
- Mounting plate temperature, in storage: -45°C to
- +85°C
- Humidity: 95% RH, non-condensing
- Altitude: 45,000 ft
- Environmental Protection: IP 65
- Vibration MIL-STD-810G CH1 Method 514.7,
- Categories 12,13,14,20,21,24
- Shock: 20 g, 11 ms, sawtoot
The VersaPNT combines a GNSS receiver, inertial measurement technology and high-performance timing oscillators to provide Assured PNT in GNSS-degraded and denied environments. This rugged and highly customizable device serves as a navigation system, master clock and network time server for mobile applications in harsh environmental conditions.
This rugged and highly customizable device combines a GNSS receiver, inertial measurement technology and high-performance timing oscillators to provide Assured PNT in GNSS-degraded and denied environments.
VersaPNT minimizes size, weight and power (SWaP) by combining PNT functions normally achieved through multiple independent subsystems, allowing for efficient integration into a myriad of ground, air and maritime platforms.
The VersaPNT combines a GNSS receiver, inertial measurement technology and high-performance timing oscillators to provide Assured PNT in GNSS-degraded and denied environments. This rugged and highly customizable device serves as a navigation system, master clock and network time server for mobile applications in harsh environmental conditions.
This rugged and highly customizable device combines a GNSS receiver, inertial measurement technology and high-performance timing oscillators to provide Assured PNT in GNSS-degraded and denied environments.
VersaPNT minimizes size, weight and power (SWaP) by combining PNT functions normally achieved through multiple independent subsystems, allowing for efficient integration into a myriad of ground, air and maritime platforms.
