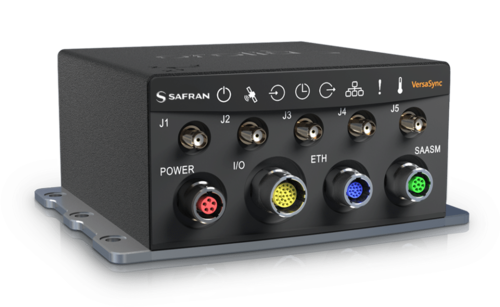

Safran-VERSASYNC Rugged GPS Time and Frequency Reference System
FEATURES
- GNSS master clock and NTP/PTP time server
- Low size, weight and power
- Ruggedized (MIL-STD-810G)
- High versatility with software configurable inputs/outputs
- Design can be efficiently customized to match specific customer requirements
- Easy integration due to small footprint and low power consumption
SPECS
- Operational Readiness
- 1PPS time of day available (hot start)
- 60 s: 1ms accuracy to UTC
- 200 s: 1µs accuracy to UTC
- Physical
- Size (WxHxD): 5.8” x 2.5” x 5.0” (147.3 x 127.5 x 63.0 mm) VITA 75 compliant
- Weight: 0.91 kg (2.0 lbs)
- Mounting: On a plate, optimized for conduction cooling, 6 through holes
- Power
- Input Voltage: 10-32 VDC
- Typical Power Draw: <25 W (with OCXO)
- Standby mode (only oscillator is powered): 0.4 W, DC power supply must be within 10 – 32 VDC
- Environmental
- Tested to MIL-STD-810G CH1
- Temperature, in operation: -40°C to +71°C with
- OCXO (-10°C to +45°C with mRO-50)
- Mounting plate temperature, in storage: -45°C to
- +85°C
- Humidity: 95% RH, non-condensing
- Altitude: 45,000 ft
- Environmental Protection: IP 65
- Vibration MIL-STD-810G CH1 Method 514.7,
- Categories 12,13,14,20,21,24
- Shock: 20 g, 11 ms, sawtoot
VersaSync is a high performance GPS master clock and network time server that delivers accurate, software configurable time and frequency signals under all circumstances, including GNSS-denied environments. Its compact size and high level of ruggedization make VersaSync suitable for mobile applications in harsh environments. Its small footprint allows for easy integration of the time and frequency functionality into systems architecture.
VersaSync is a high performance GPS master clock and network time server that delivers accurate, software configurable time and frequency signals under all circumstances, including GNSS-denied environments. Its compact size and high level of ruggedization make VersaSync suitable for mobile applications in harsh environments. Its small footprint allows for easy integration of the time and frequency functionality into systems architecture.
