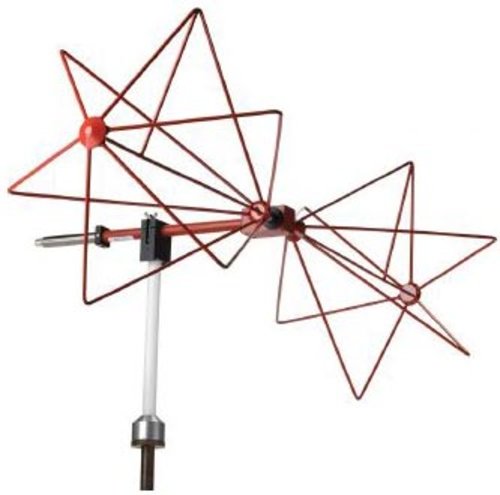

ETS-3110C Biconical Antenna (30 - 300 MHz)

  • Compact Size for Use in Limited Space
  • Unique Element Design Improves Performance
  • Improved Balun Design for Increased Efficiency
  • Flexible Mounting

Electrical Specifications

  • Frequency Minimum 30 MHz
  • Frequency Maximum 300 MHz
  • Connectors Type N (f)
  • Impedance (Nominal) 50 ?
  • Maximum Continuous Power 250mW
  • Pattern Type Omnidirectional
  • Peak Power NA
  • Polarization Linear
  • VSWR 2.0:1

Physical Specifications

  • Depth 79.0 cm
  • Diameter 52 cm
  • Weight 2.7 kg
  • Width 132.1 cm

Product Number:

ETS-3110C

Manufacturer:

ETS-Lindgren

Quantity:

Total
Unit price
base price
Stock
Call or email for delivery time
The ETS-Lindgren Model 3110C Biconical Antenna combines several unique features, achieving high levels of performance.The balun, feedline, and element cage design give the Model 3110C response curves that are almost linear, making it ideal for swept measurements. The antennas insensitivity to orientation in the vertical plane helps eliminate any unnoticed or unrecorded change in orientation as the cause for a change in test results.To achieve this kind of performance, the balun is designed using an unbalanced-to-balanced transformer. This results in very even current transformation. Ferrites are also placed along the feedlines, reducing common mode current that can interfere with the antenna pattern in the vertically polarized measurements.The 3110C is easy to mount, and now features a stinger mount with square collar. This collar allows for easy polarization alignment when using and ETS-Lindgren mast.Common applications include measurements to MIL-STD specifications; ANSI C63.4, FCC-18 and EN 55022 emissions testing.ETS-Lindgren is the only manufacturer to offer optional extended elements. These elements are twice as long as standard elements and enable users to generate high fields at low frequencies with less than 25% of the power usually required.FeaturesUnique Element DesignSome biconical antennas exhibit an electrical bump at 281 MHz, but ETS-Lindgrens biconical element crosspiece design improves performance by eliminating this problem. The biconicals crosspiece connects the center element to the outer element diminishing the bump. Another enhancement is element cages that cannot be overtightened when screwed into the balun.Improved Balun DesignWith a balun constructed from a micro-transformer, the 3110C has a perfect impedance match and balance between 50 ? and 200 ? (the impedance of the biconical elements), for the whole frequency range of the antenna.Compact SizeThe compact size of EMCO biconical antennas makes them ideal for anechoic chambers and shielded enclosures. Biconical antennas conserve limited space and help minimize proximity effects.Quality ConstructionBiconical elements are constructed of lightweight corrosion resistant aluminum, providing years of trouble-free indoor and outdoor service.Flexible Mounting SystemThe 3110C antenna includes both an EMCO traditional mount, which is ideal for tripod and fits all EMCO masts, and a rear stinger mount. The stinger mount permits on-axis rotation/polarization.
