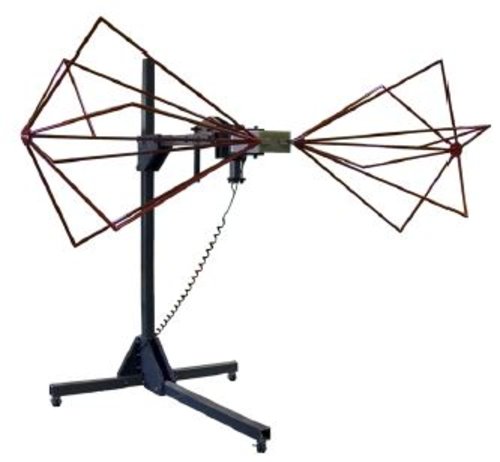

ETS-3158 Biconical Antenna (20 - 120 MHz)
- Power handling up to 5 kW
- Rugged fabrication with powder-coated elements
- Elements can be removed for transportation and storage
- Available with a 7/16 DIN connector
Electrical Specifications
- Frequency Minimum 20 MHz
- Pattern Type omnidirectional
- Polarization linear
- Frequency Maximum 120 MHz
- Connectors 7/16 DIN (f)
- Width 3.00 m
- Impedance (Nominal) 50 ?
- Maximum Continuous Power 5 kW
- Peak Power 7 kW
- VNA (For Chamber Calibration) 6:1 maximum, 2:1 for most of the range
Physical Specifications
- Length 1.14 m
- Height 1.14 m
Stock
Call or email for delivery time
The 3158 is a rugged version of the successful 3109 design. The 3158 has larger elements which reduce the VSWR at low frequencies. The rugged construction increases the power handling to 5kW. It is a great antenna for generating higher fields at the 20MHz to 80MHz range.
